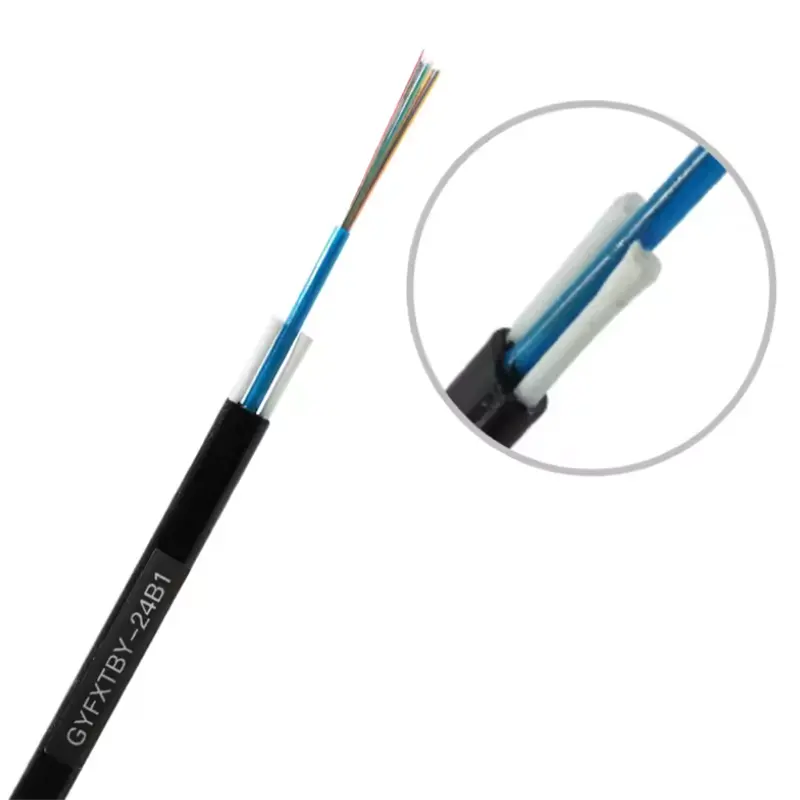

The GYFXTBY Outdoor 12 24 core Single Mode Aerial Optical Fiber Cable boasts a robust construction featuring a PE/LZSH sheath and FRP/Steel strength member, ensuring a long-lasting and reliable performance in outdoor environments.
Features
Compact design for self-supporting use
2 FRP supports long span
Light weight and small diameter, easy for installation
Loose tube with gel filled give good protection for the fiber
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
Attenuation (+20℃) |
@850nm |
≤3.5dB/km |
≤3.5dB/km |
||
@1300nm |
≤1.5dB/km |
≤1.5dB/km |
|||
@1310nm |
≤0.45dB/km |
||||
@1550nm |
≤0.30dB/km |
≤0.30dB/km |
|||
Bandwidth （Class A） |
@850 |
≥500MHZ·km |
≥200MHZ·km |
||
@1300 |
≥1000MHZ·km |
≥600MHZ·km |
|||
Numerical aperture |
0.200±0.015NA |
0.275±0.015NA |
|||
Cable Cutoff Wavelength |
≤1260nm |
≤1480nm |
|||

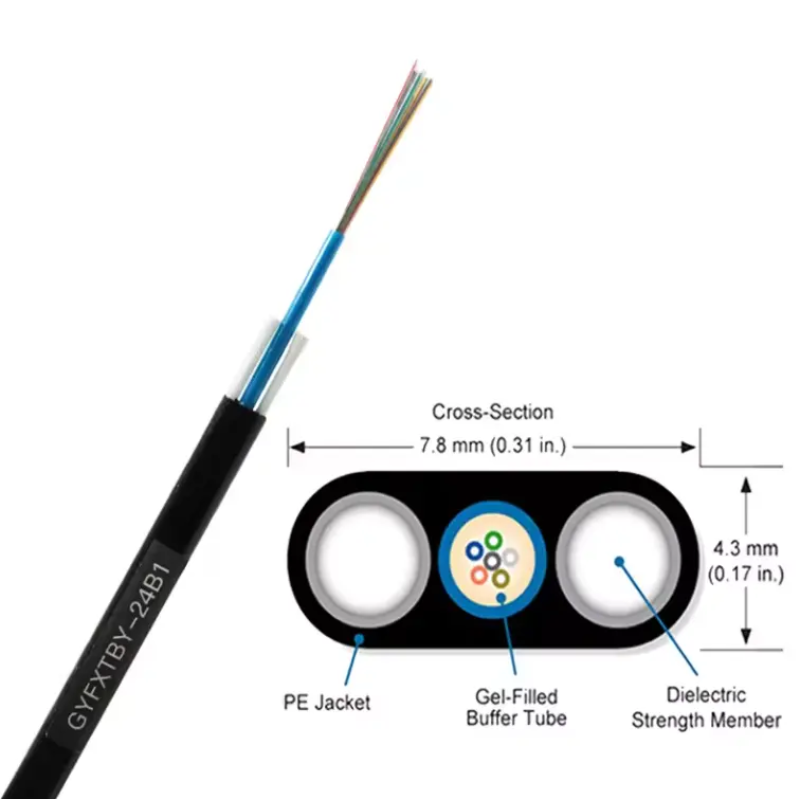

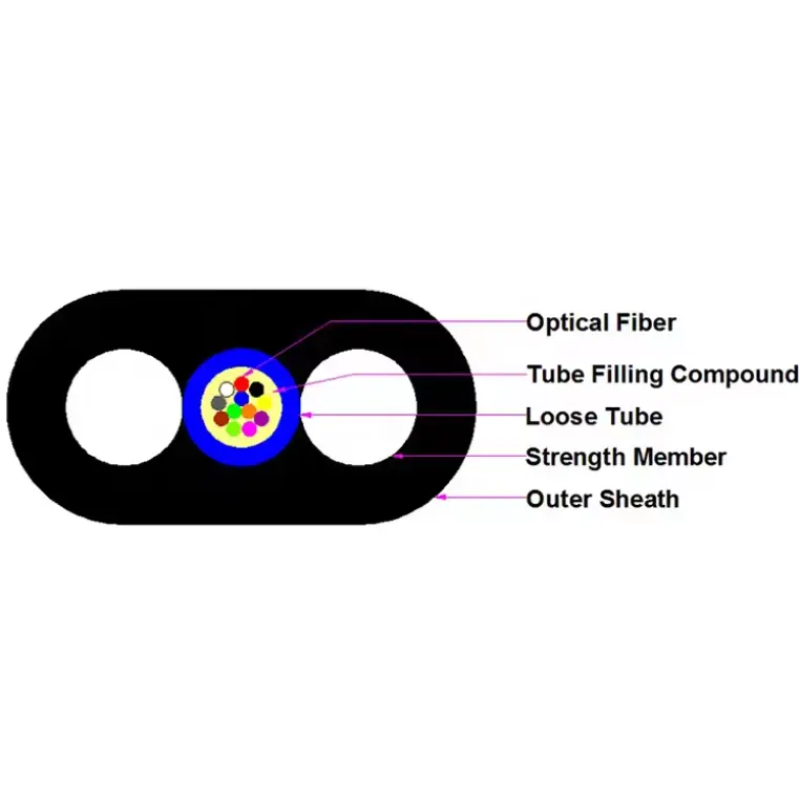

Paramenters
item |
Materials |
Color |
Diameter |
Number |
Thickness |
Loose Tube |
PBT |
White |
2.1±0.05mm |
1 Root |
/ |
Strength Member |
FPR |
White |
1.5±0.05mm |
2 Root |
/ |
Out Sheath |
PE |
Black |
3.8×7.8 ±0.2 mm |
/ |
0.9±0.1 mm |
