Split Input Signal Evenly into 2 Output Ports
≤4.1dB Low Insertion Loss and ≤0.2dB Low Polarization Dependent Loss
Fully Passive Optical Branching Device
Fits Racks, Wall-mounted Boxes, Optical Distribution Boxes, etc.
1260~1650nm Broad Operating Wavelengths
G.657A1 Bend Insensitive Fibers for Low Bending Loss
Commonly Found in POL, Datacom, LAN, CATV, LCP, FTTx and More Applications
Specifications

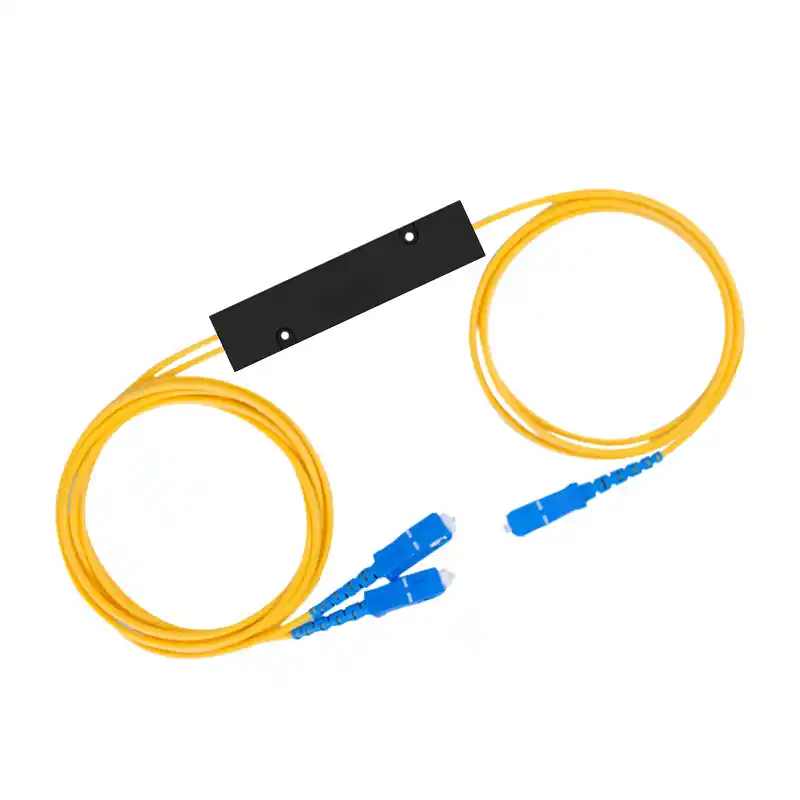

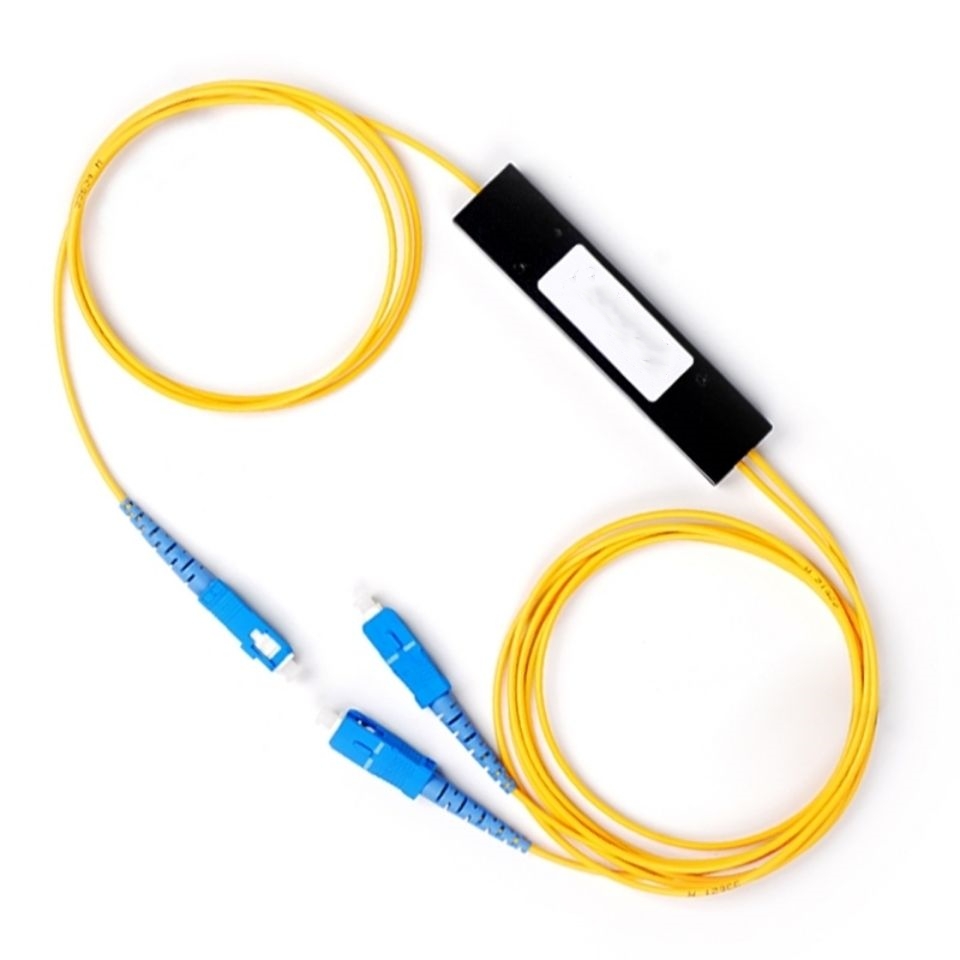

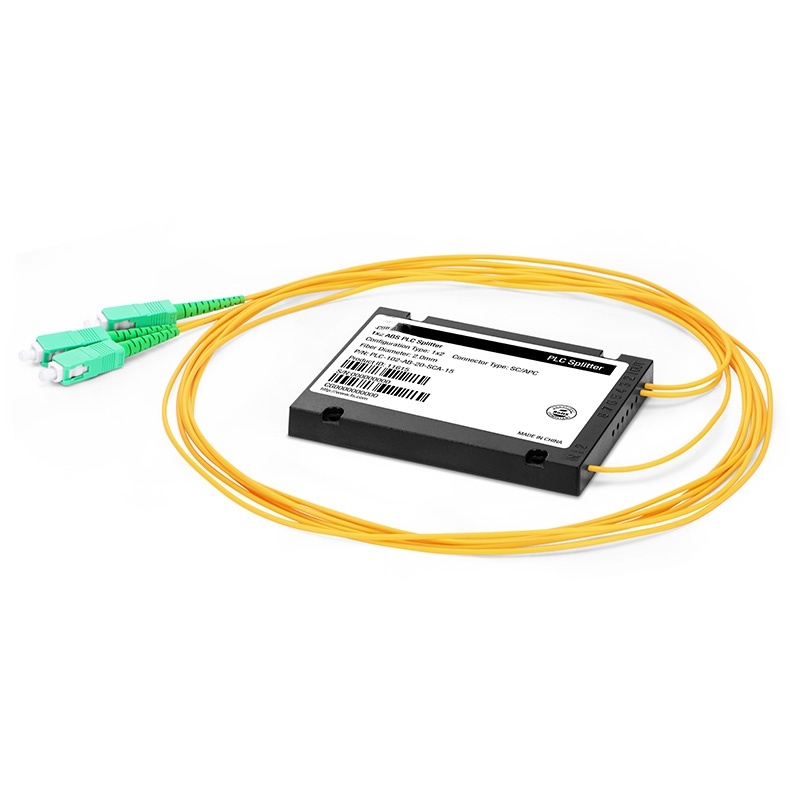

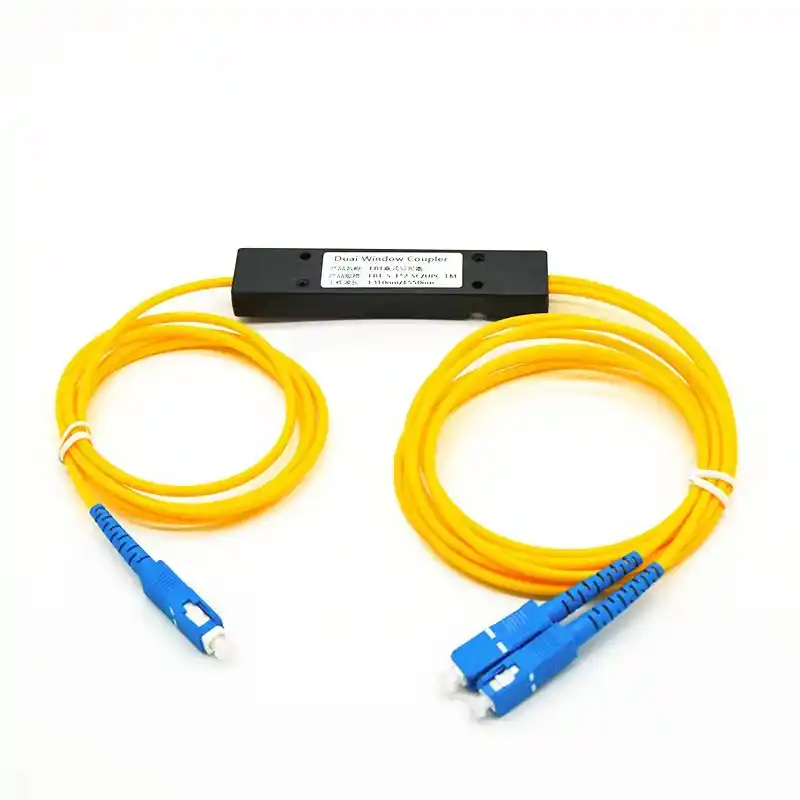

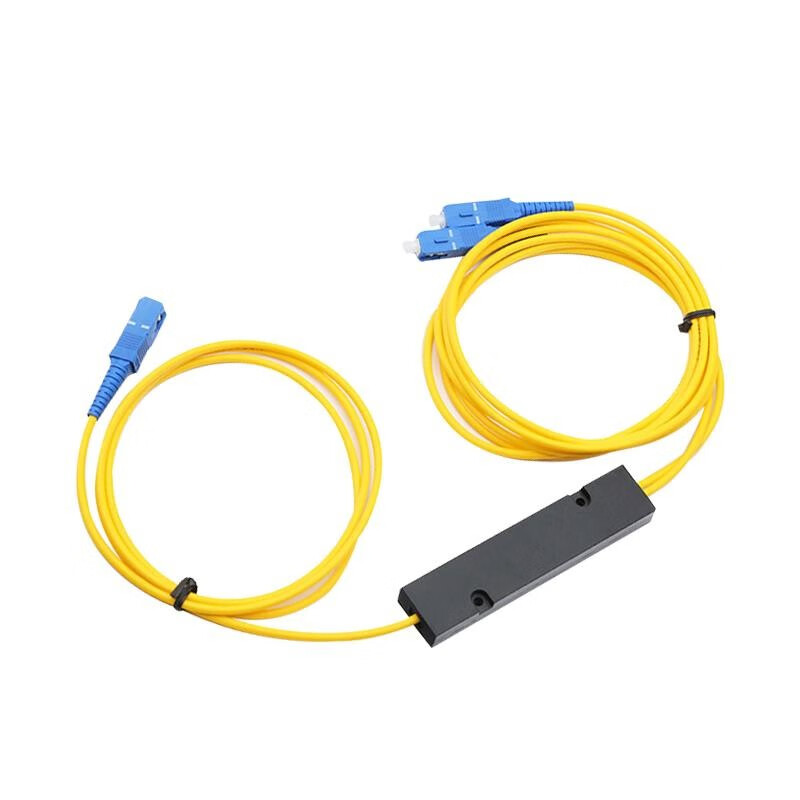

1 × 2 Fiber PLC Splitter, ABS Box Type, Singlemode, SC/APC
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
Pigtailed ABS splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution products(outdoor fiber distribution box) or network cabinets.
Package Style |
ABS Module |
Configuration Type |
1×2 |
Fiber Grade |
G.657A1 |
Fiber Mode |
Singlemode |
Connector Type |
SC/APC |
Split Ratio |
Symmetrical |
Input/Output Fiber Diameter |
2.0mm |
Input/Output Fiber Length |
1.5m |
Insertion Loss |
≤4.1dB |
Return Loss |
≥55dB |
Loss Uniformity |
≤0.4dB |
Directivity |
≥55dB |
Polarization Dependent Loss |
≤0.2dB |
Temperature Dependent Loss |
≤0.5dB |
Wavelength Dependent Loss |
≤0.3dB |
Operating Bandwidth |
1260~1650nm |
Dimensions(HxWxD) |
0.39"×3.94"×3.15”(10x100×80mm) |
Temperature |
Operating-40 to 85℃(-40 to 185°F) |
