Type : Fiber Optic Cable, Optical Fibers, Fiber optic components

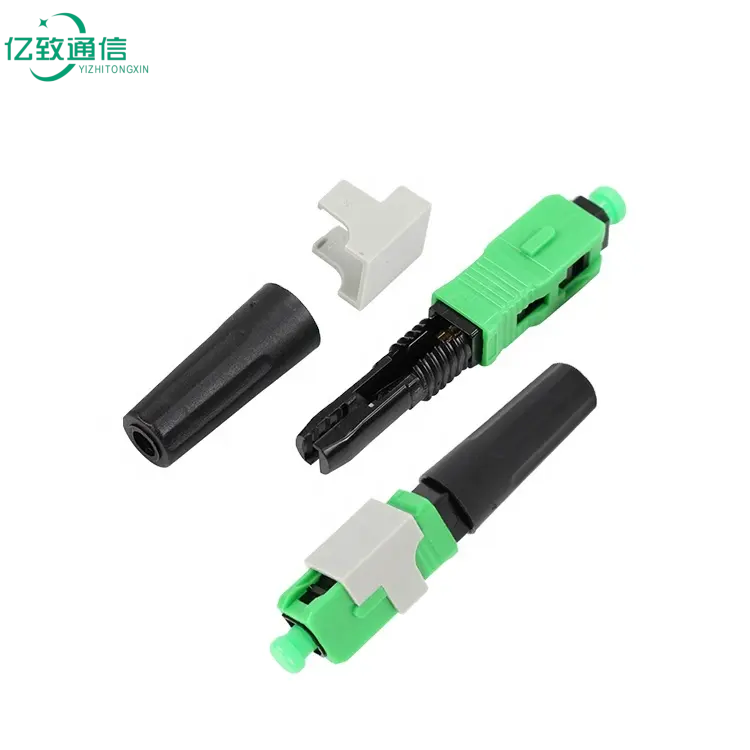

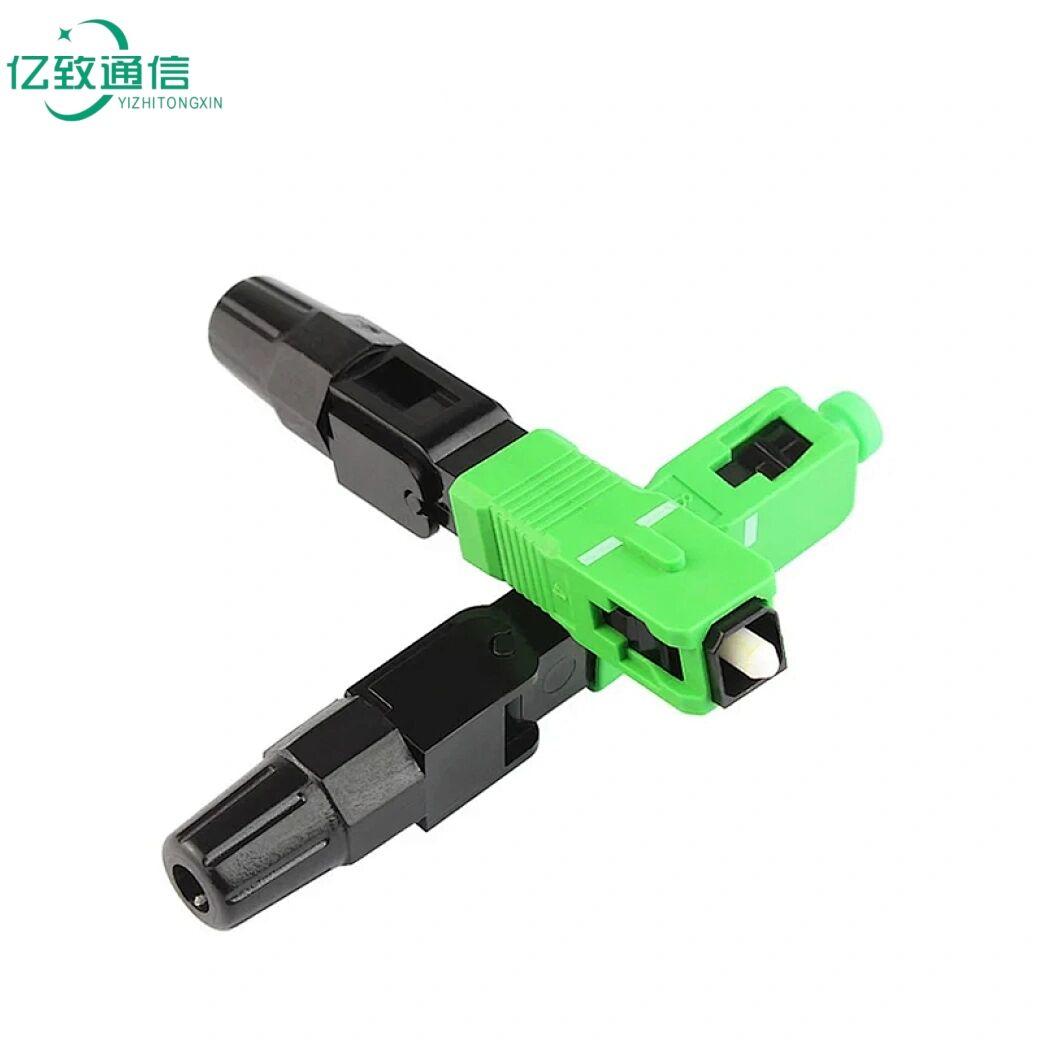

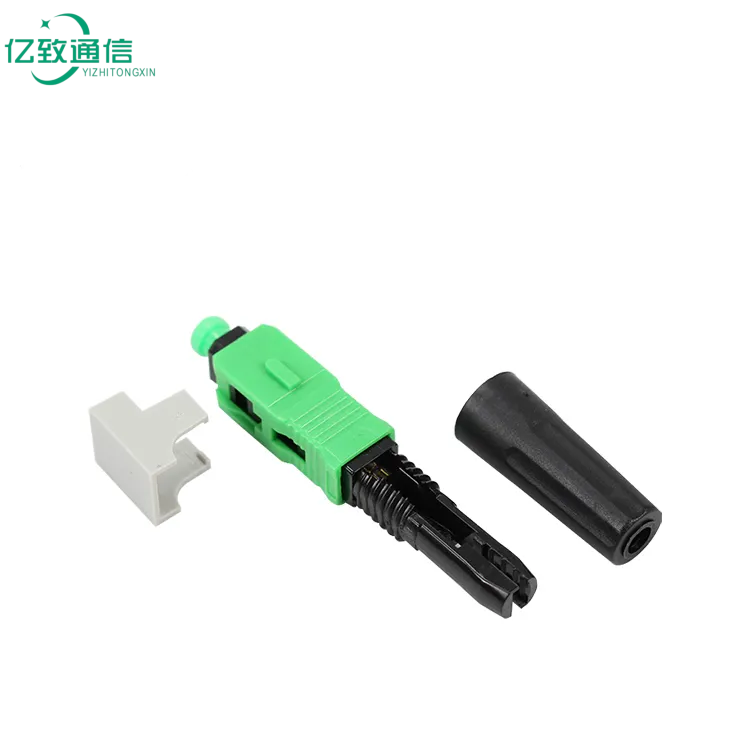

Item : SC/APC fast connector
Insertion loss : UPC<0.2dB, APC<0.3dB
Material : Plastic or steel
Polishing : APC, UPC
Use : FTTX
Module : SM, MM
Fc Apc Fiber Connector Product Features:
Low insertion loss, high return attenuation, high stability
Repeated several mating characteristics, interchangeability
Standard metal parts
Bayonet connection, high-density docking
Ceramic ferrule, PC, UPC and APC polishing
Provide ordinary PVC or LSZH fiber optic cable
Parameter:
cable applicable |
3.1 x 2.0 mm drop cable |
cable diameter |
125μm ( 657A & 657B ) |
clad diameter |
250μm |
fiber type application |
single mode |
operation time |
about 100s(not including fiber management ) |
insertion loss |
≤ 0.3dB(1310nm & 1550nm) |
return loss |
≤ -40dB |
bare fiber strength |
5 N |
clad strength |
10 N |
of tension |
50 N |
operation temperature |
-40~+7 250μm 5°C |
tensile strength (20 N) |
IL ≤ 0.2dB RL ≤ 5dB |
mechanical durability |
(500 times) IL ≤ 0.2dB RL ≤ 5dB |
