Description

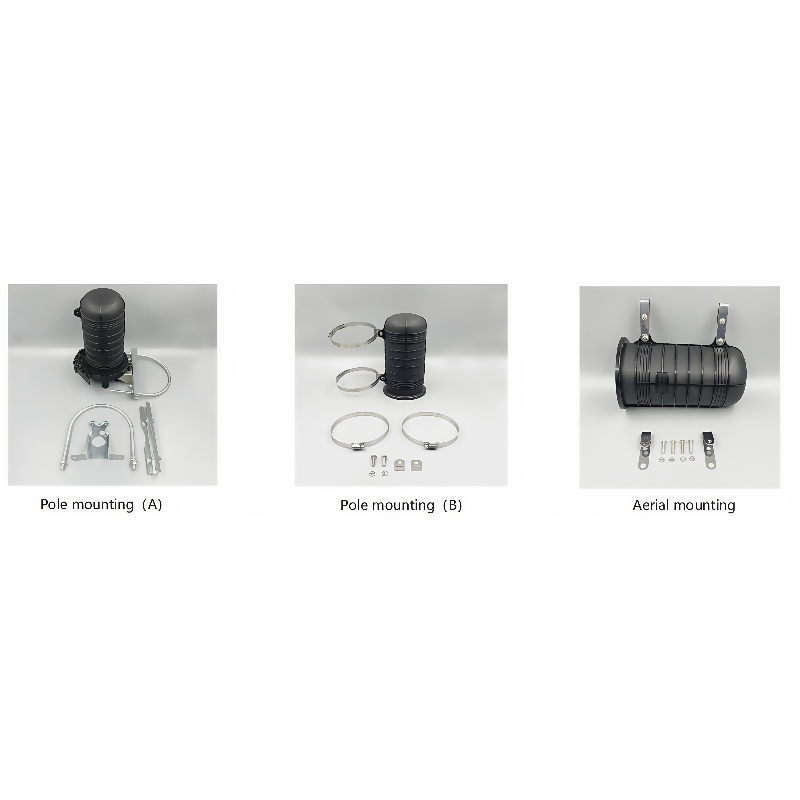

optical splice closures are used to distribute, splice, and store theoutdoor optical cables which enter and exit from the ends of theclosure. There are two connection ways: direct connection and splittingconnection. They are applicable to situations such as overhead, man-well of pipeline, embedded situation etc. Comparing with terminal boxthe closure requires much stricter requirement of seal. Sealing ring andair valve are required for closure, but that are not necessary forterminal box.
| PCS/CARTON | Gross Weight（Kg） | Net Weight（Kg） | Carton Size（cm） | Cbm（m³) | ||||
| 8 | 12.5 | 12 | 64*41*36 | 0.095 | ||||
Technical Specifications
Seal perfommance: after the box is sealed, inflate to 100kPa inwards (inflation only apply to the models with the air hole),and then soak it in the water of normal temperature, after 15 minutes of steady observation, there is no bubble to overflow.
Insulation resistance: the insulation resistance between the metal work piece and the earth is greater than 20kMΩ.
Pressurization: there is no breakdown or flashover under 15kVdc/imin between the metal work piece and the earth
The curvature radius of the fiber 40mm, without extra loss inside the splice tray.It can bear the axial tensile strength no less than 1000N.
Lifetime: 25 years.
Other performances are all in accordance with the requirement of standard YD/T814-1998.
