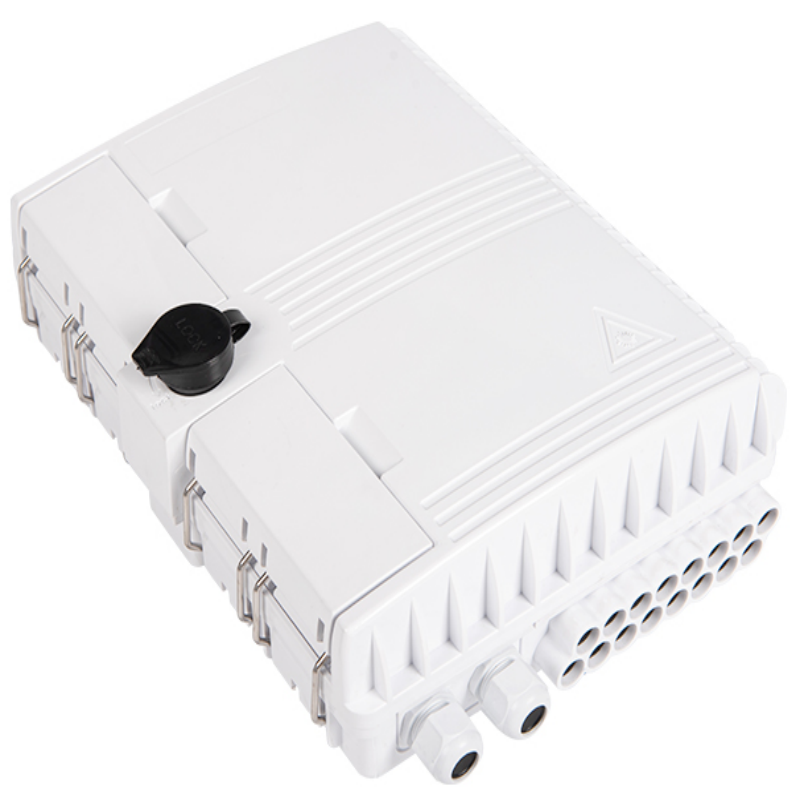

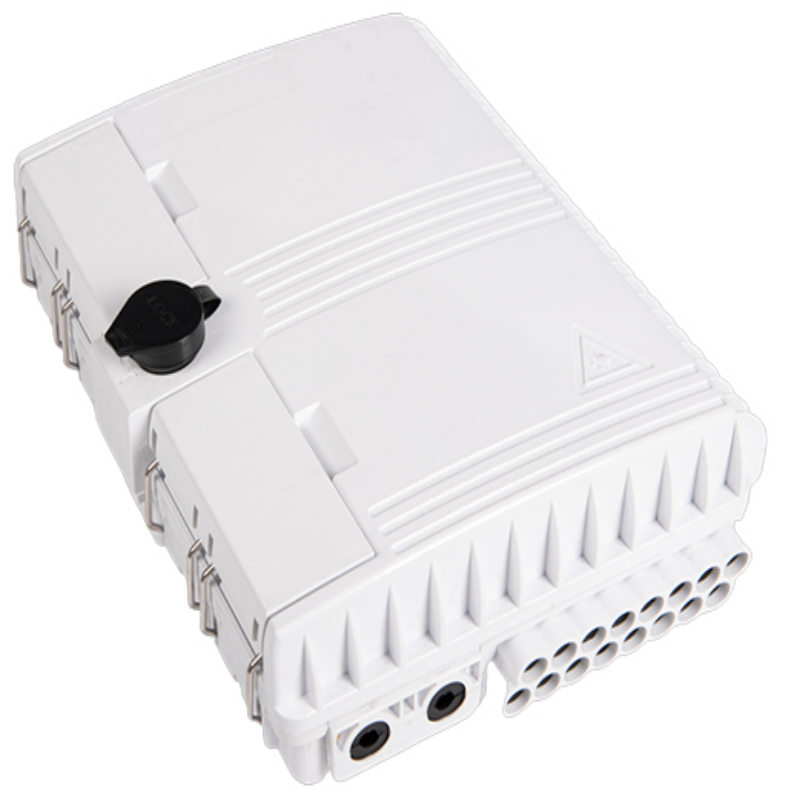

16 Core Fiber Optic Distribution Box

This box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication

network system.

It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides

solid protection and management for the FTTX network building.

Features

1、Total enclosed structure.

2、 Material: ABS or ABS+PC, wet-proof、 water-proof、dust proof、anti-aging, protection level up to IP65.

3、 Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution ... etc all in one.

4 、 Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SCadaptor .installation, easy maintenance.

5、 Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.

6 、 Box can be installed by the way of wall-mounted or poled- mounted,suitable for both indoor and outdoor uses.

Configuration

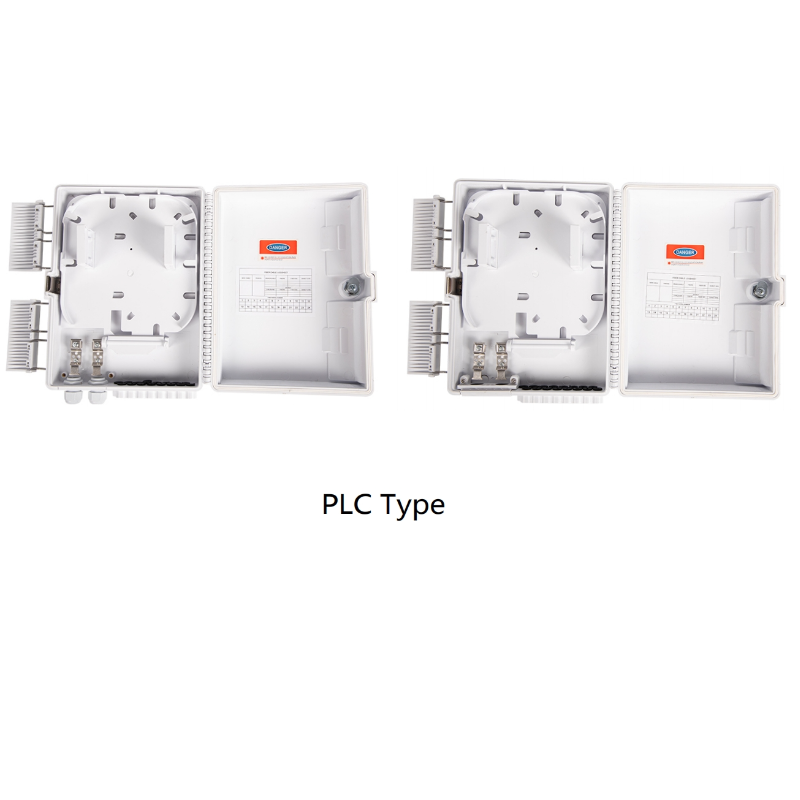

Material	Size	Max Capacity	Nos of PLC	Nos of Adaptor	Weight	Ports
Strengthen ABS or ABS+PC	ABC(mm) 300245100	SpIice 16 Fibers (1trays,16 core/tray)	2pcs of 1x8 1pcs of 1x16	16 pcs of SC(max)	1.35kg	2 in 16 out

Packing List

PCS/CARTON	Gross Weight（Kg）	Net Weight（Kg）	Carton Size（cm）	Cbm（m³)
10	15.5	14.5	563350	0.092

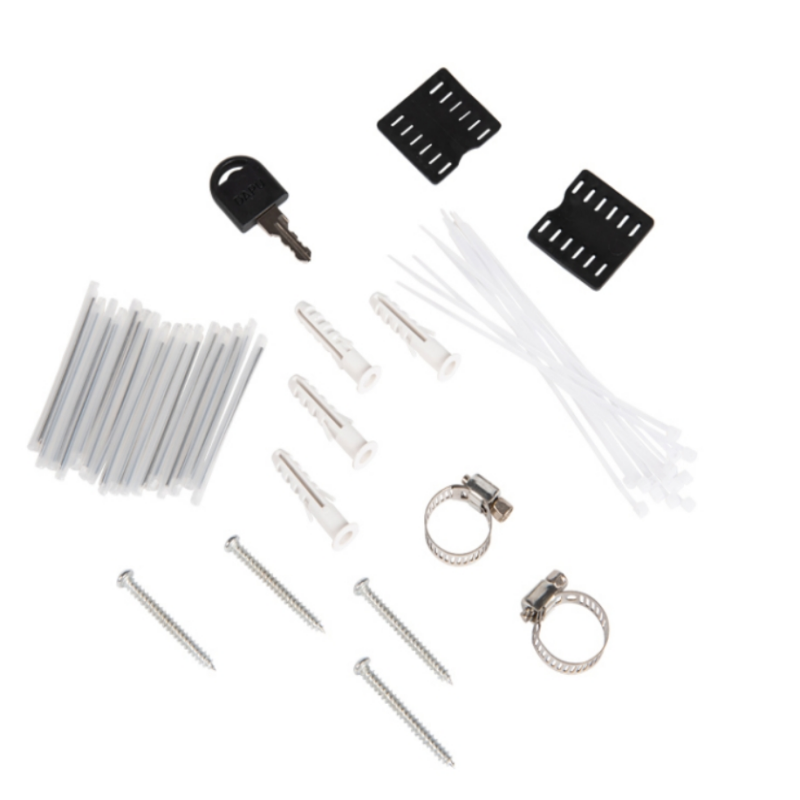

Standard Accessories

Screw: 4mm*40mm 4pcs

Expansion bolt: M6 4pcs

Cable tie:3mm*10mm 6pcs

Heat-shrink sleeve:1.0mm*3mm*60mm 16pcs

key:1pcs

hoop ring:2pcs

TPR black block:2 pcs（Optional Accessories ）

Replaceable Accessories：1 sets（Optional Accessories ）
