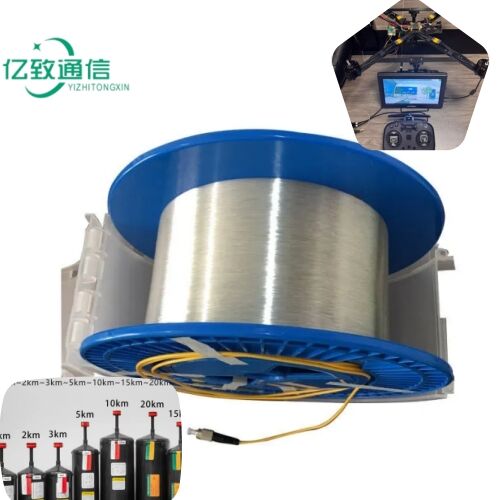

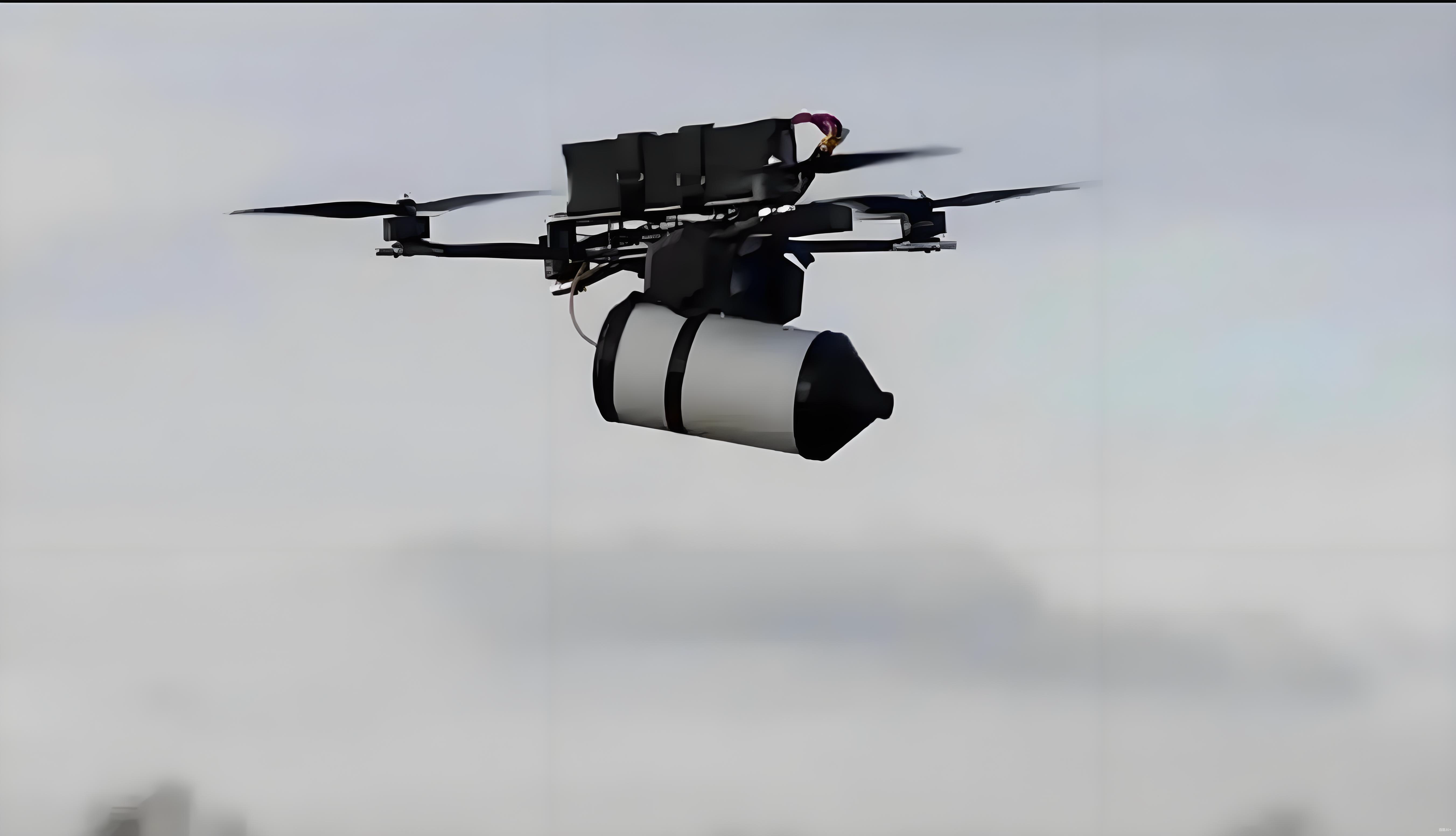

With the development and use of drones from entertainment facilities to defense facilities, the high-quality G657A2 fiber optic cable from Yizhi provides more stable signal transmission and extremely high performance supply. When combined with small war missiles, it can provide more convenient and anti-interference drone operations.
Characteristics |
Conditions |
Specified values |
Units |
|
|---|---|---|---|---|
Optical Characteristics | ||||
|
Attenuation |
1310nm |
≤0.35 |
[dB/km] |
|
1383nm(after H2-aging) |
≤0.35 |
[dB/km] |
||
1460nm |
≤0.25 |
[dB/km] |
||
1490nm |
≤0.23 |
[dB/km] |
||
1550nm |
≤0.21 |
[dB/km] |
||
1625nm |
≤0.23 |
[dB/km] |
||
|
Attenuation vs. Wavelength Max. α difference |
1285-1330nm, in reference to 1310nm |
≤0.03 |
[dB/km] |
|
1525-1575nm, in reference to 1550nm |
≤0.02 |
[dB/km] |
||
Zero Dispersion Wavelength(λ0) |
-- |
1300-1324 |
[nm] |
|
Zero Dispersion Slope(S0) |
-- |
≤0.092 |
[ps/(nm2·km)] |
|
PMD |
Maximum Individual Fibre | -- |
≤0.1 |
[ps/√km] |
| Link Design Value（M=20，Q=0.01%) | -- |
≤0.06 |
[ps/√km] |
|
| Typical Value | -- |
0.04 |
[ps/√km] |
|
Cable Cutoff Wavelength (λCC) |
-- |
≤1260 |
[nm] |
|
Mode Field Diameter（MFD） |
1310nm |
8.4-9.2 |
[μm] |
|
1550nm |
9.3-10.3 |
[μm] |
||
Effective Group Index of Refraction（Neff） |
1310nm |
1.466 |
-- |
|
1550nm |
1.467 |
-- |
||
Point Discontinuities |
1310nm |
≤0.05 |
[dB] |
|
1550nm |
≤0.05 |
[dB] |
||
Geometrical Characteristics | ||||
Cladding Diameter |
-- |
125.0±0.7 |
[μm] |
|
Cladding Non-Circularity |
-- |
≤0.7 |
[%] |
|
Coating Diameter |
-- |
235-245 | [μm] |
|
Coating-Cladding Concentricity Error |
-- |
≤12.0 |
[μm] |
|
Coating Non-Circularity |
-- |
≤6.0 |
[%] |
|
Core-Cladding Concentricity Error |
-- |
≤0.5 |
[μm] |
|
Curl(radius) |
-- |
≥4 |
[m] |
|
Delivery Length |
-- |
Up to 50.4 | [km/reel] |
|
Environmental Characteristics |
1310nm, 1550nm & 1625nm |
|||
Temperature Dependence Induced Attenuation |
-60℃ to +85℃ |
≤0.05 |
[dB/km] |
|
Temperature-Humidity Cycling Induced Attenuation |
-10°C to +85°C, 98% RH |
≤0.05 |
[dB/km] |
|
Watersoak Dependence Induced Attenuation |
23°C, for 30 days |
≤0.05 |
[dB/km] |
|
Damp Heat Dependence Induced Attenuation |
85°C and 85% RH, for 30 days |
≤0.05 |
[dB/km] |
|
Dry Heat Aging |
85℃, for 30 days |
≤0.05 |
[dB/km] |
|
Mechanical Specification | ||||
|
Proof Test |
-- |
≥9.0 |
[N] |
|
-- |
≥1.0 |
[%] |
||
-- |
≥100 |
[kpsi] |
||
Macro-bend Induced Attenuation |
10 Turns Around a Mandrel of 15 mm Radius | 1550nm |
≤0.03 |
[dB] |
| 10 Turns Around a Mandrel of 15 mm Radius | 1625nm |
≤0.1 |
[dB] |
|
| 1 Turn Around a Mandrel of 10 mm Radius | 1550nm |
≤0.1 |
[dB] |
|
| 1 Turn Around a Mandrel of 10 mm Radius | 1625nm |
≤0.2 |
[dB] |
|
| 1 Turn Around a Mandrel of 7.5 mm Radius | 1550nm |
≤0.5 |
[dB] |
|
| 1 Turn Around a Mandrel of 7.5 mm Radius | 1625nm |
≤1.0 |
[dB] |
|
Coating Strip Force |
typical average force |
1.5 |
[N] |
|
peak force |
1.3-8.9 |
[N] |
||
Dynamic Fatigue Parameter(nd) |
-- |
≥20 |
-- |
|
