Up to 8 PoE+ Ports, Total Budget 125W
Broadcom BCM53547 Chip

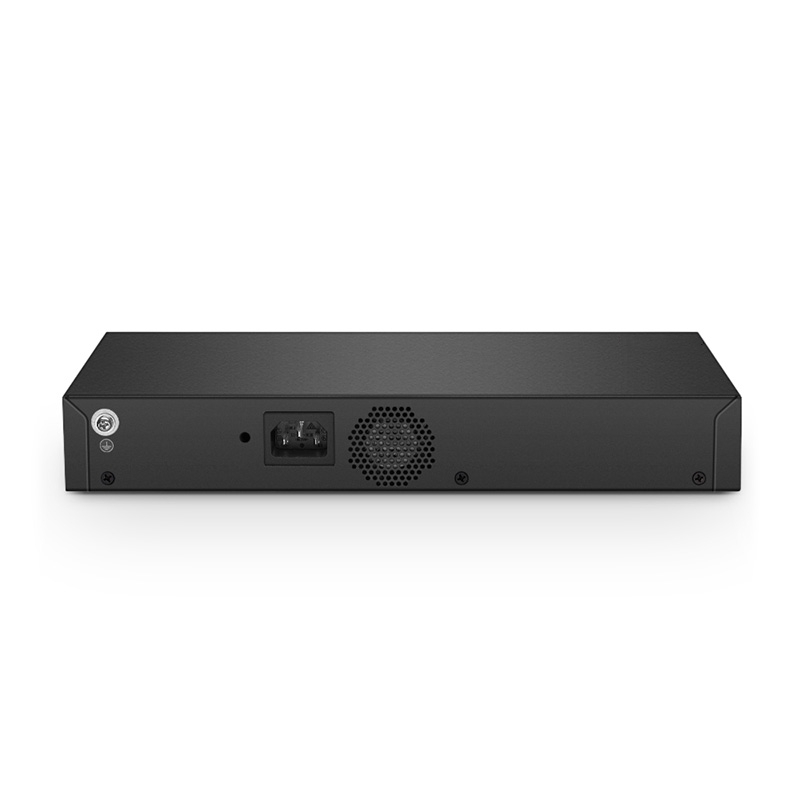

1 Built-in Fan and Single Power Supply
Support ERPS, Voice VLAN, QoS, OSPF, DHCP Server, etc.
Support SSH, ACL, AAA, 802.1X, RADIUS, TACACS+, etc. for Security
Advanced Network Monitoring Using SFlow
Support Airware Cloud/CLI/WEB/SNMP for Flexible Operation
≥10KV Lightning Protection, Innovative Anti-Wave and Anti-Surge Design
Specifications

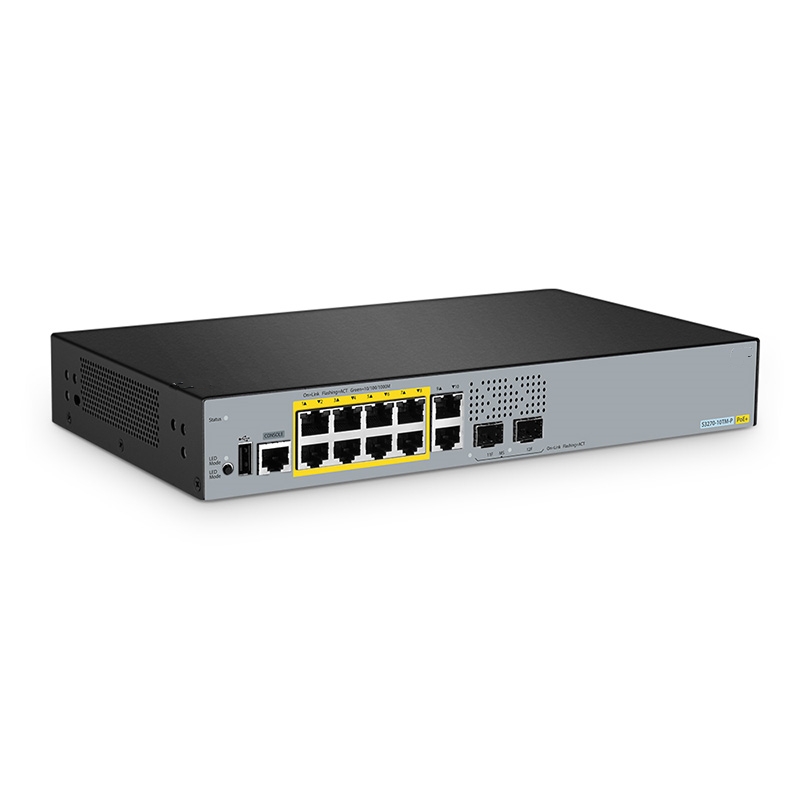

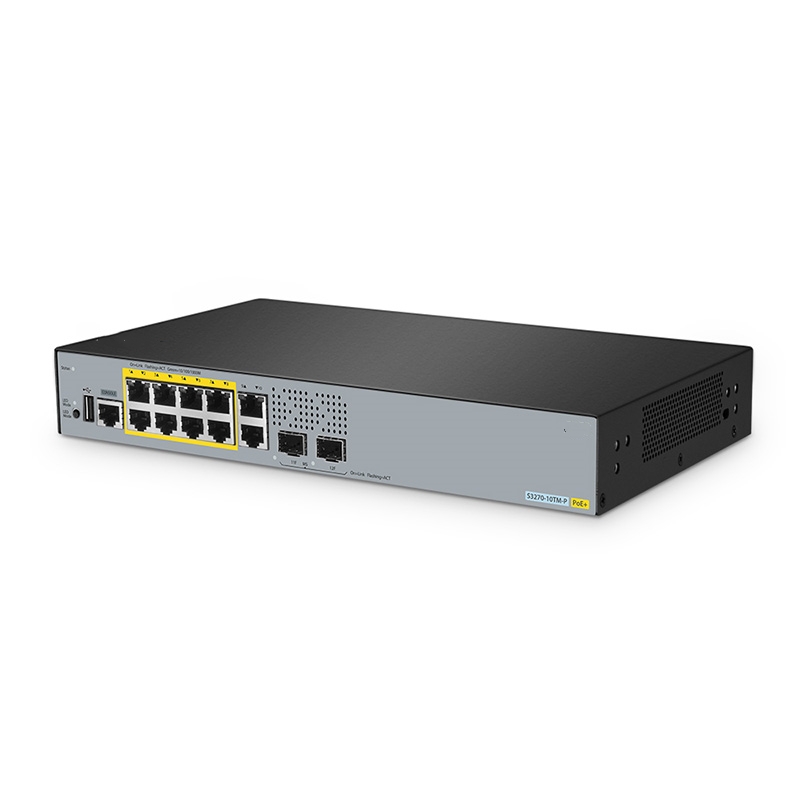

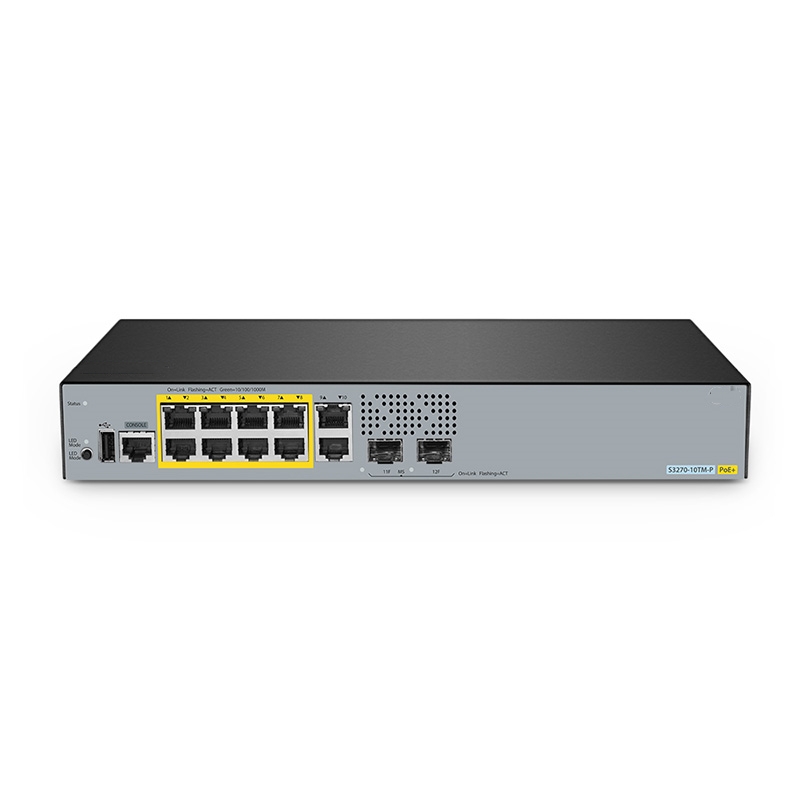

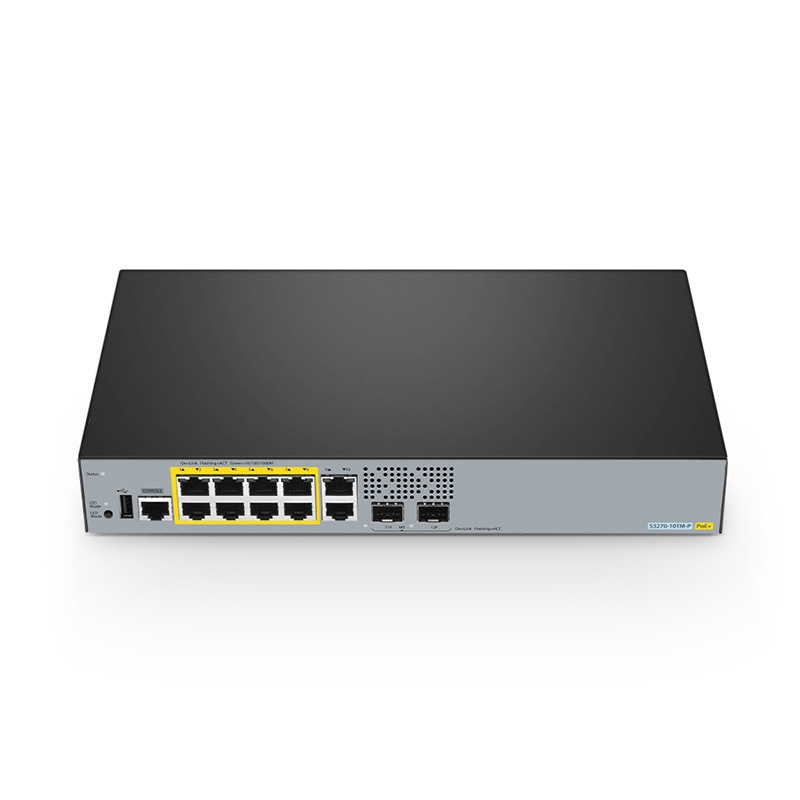

10-Port Gigabit Ethernet L2+ PoE+ Switch, 8 x PoE+ Ports @125W, with 2 x 2.5Gb SFP Uplinks, Broadcom Chip
10-port switch is equipped with 10x 10/100/1000M RJ45 ports, 2x 2.5Gb SFP uplinks. The Ethernet all-optical network adopts point-to-point transmission. The high-quality signal is transmitted without external interference and the data is forwarded more steadily. This switch delivers 30 Gbps switching capacity and 22.32 Mpps forwarding rate.
This access switch delivers a compact, cost-effective solution for carrier's IP MAN and enterprise networks. Based on the high-performance hardware and FSOS platform, it supports functions such as ACL, QinQ and QoS. Its simple management mode and flexible installation can meet the requirement of any complicated scenario.
Ports |
10×10/100/1000BASE-T RJ45|2x1/2.5G SFP |
Switch Chip |
BCM53547 |
Switching Capacity |
30 Gbps |
Latency |
4.2μs |
Forwarding Rate |
22.32 Mpps |
Input Range |
100-240VAC,50-60Hz |
Packet Buffer |
512KB |
SDRAM |
512MB |
Flash Memory |
64MB |
Jumbo Frame |
9,216 |
Power Supply |
1 Built-in |
MTBF |
200000 Hours |
Fan Number |
1 Built-in |
Rack Space |
1U |
Max.Power Consumption |
16W(141W with PoE) |
Power Budget |
125W |

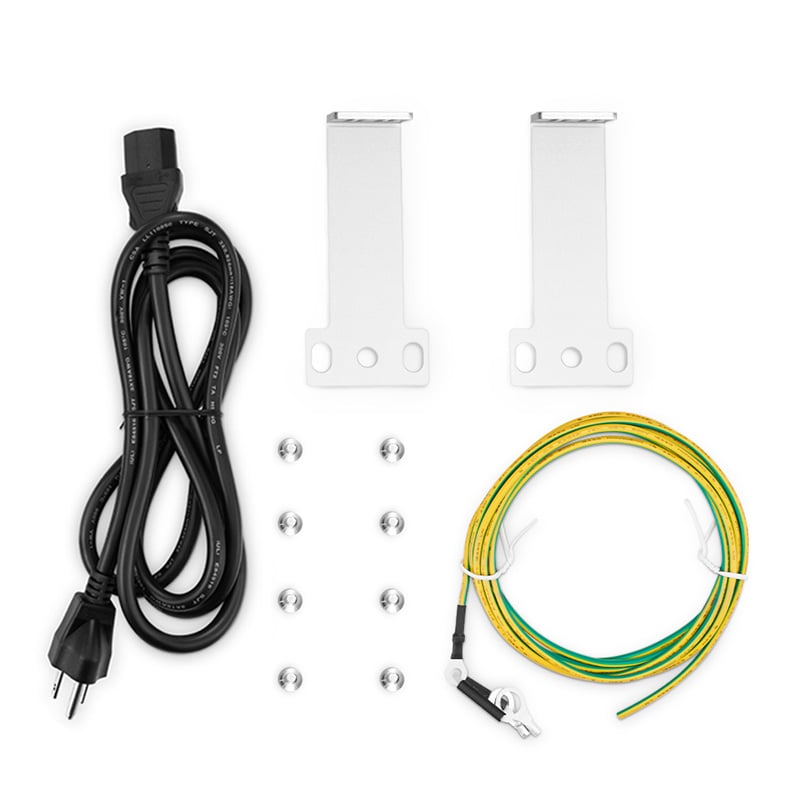

Mounting Options |
Desktop,Wall and Rack |
Storage Temperature |
-40 to 70℃(-40 to 158°F) |
Dimensions(HxWxD) |
1.75"×11.69"x6.69"(44.5×297×170mm) |
Operating Temperature |
O to 45℃(32 to 113°F) |
