EN

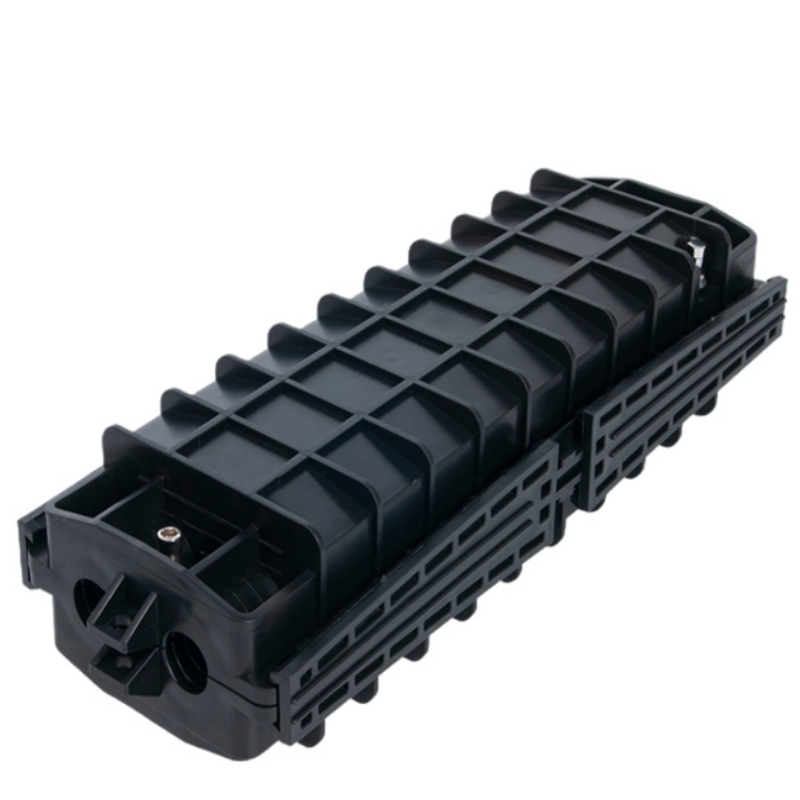

optical splice closures are used to distribute, splice, andstore the outdoor optical cables which enter and exit fromthe ends of the closure. There are two connection ways.direct connection and splitting connection. They areapplicable to situations such as overhead, man-well ofpipeline, embedded situation etc. Comparing with terminalbox, the closure requires much stricter requirement of seal.
Features
The closure casing is made of quality engineering Pp plastics, and of goodperformance of anti-erosion against acid and alkali salt, anti-aging, aswell as smooth appearance and reliable mechanical structure.
The mechanical structure is reliable and has the performance of resistingwild environment and intensive climate changes and serious workingenvironment. The protection grade reaches IP68

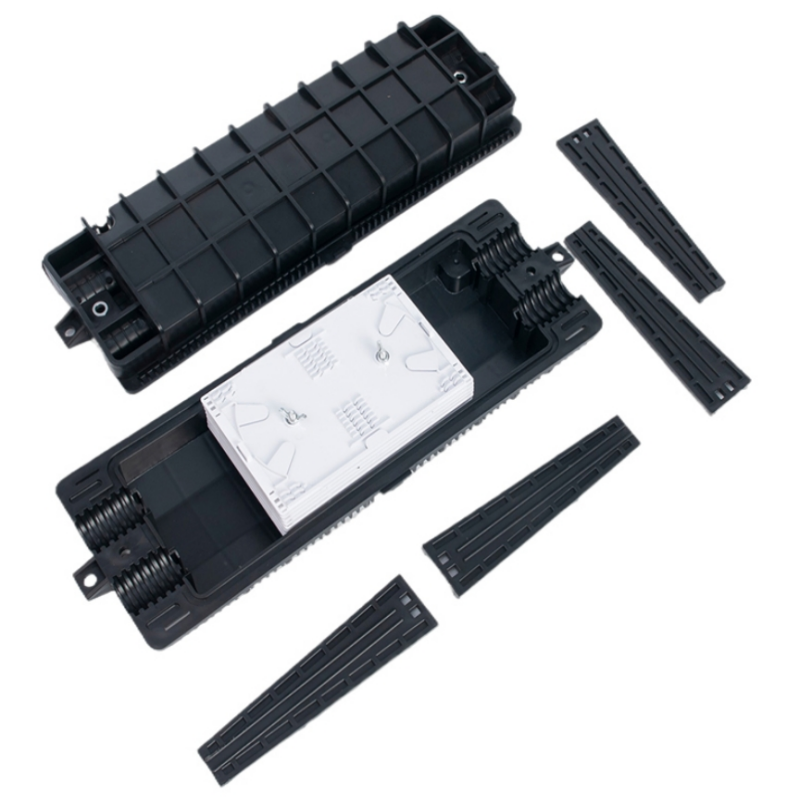

The splice trays inside the closure are turn-able like booklets, and haveadequate curvature radius and space for winding optical fiber to makesure the curvature radius for optical winding 40mm,Each optical cableand fiber can be operated individually.
The closure is of small volume, big capacity and convenient maintenance.The elastic rubber seal rings inside the closure are of good sealing andsweat-proof performance.
Configuration
| Material | Size | Max Capacity | Diameter of Cable | Weight | Number of Cable Entrance/Exit |

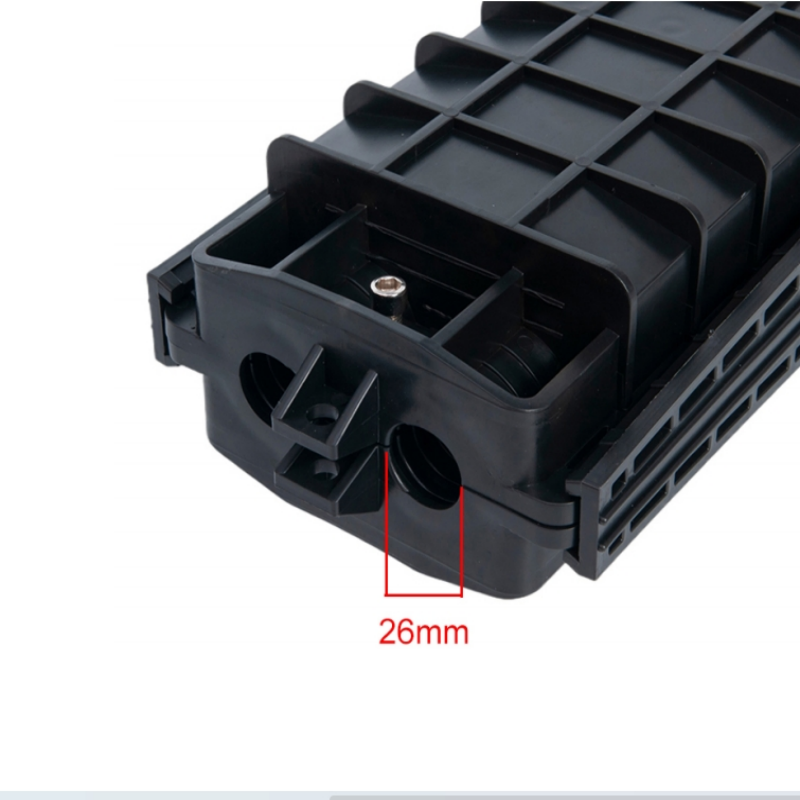

| Strengthen PP | A*B*C(mm) 480*155*110 | Splice 96 Fibers (4/8 trays,12 core/tray) | Diameter : φ 26mm | 1.7kg | 2 in 2 out |
Packing List
| PCS/CARTON | Gross Weight（Kg） | Net Weight（Kg） | Carton Size（cm） | Cbm（m³) |
| 10 | 25 | 24 | 59*51*36 | 0.108 |

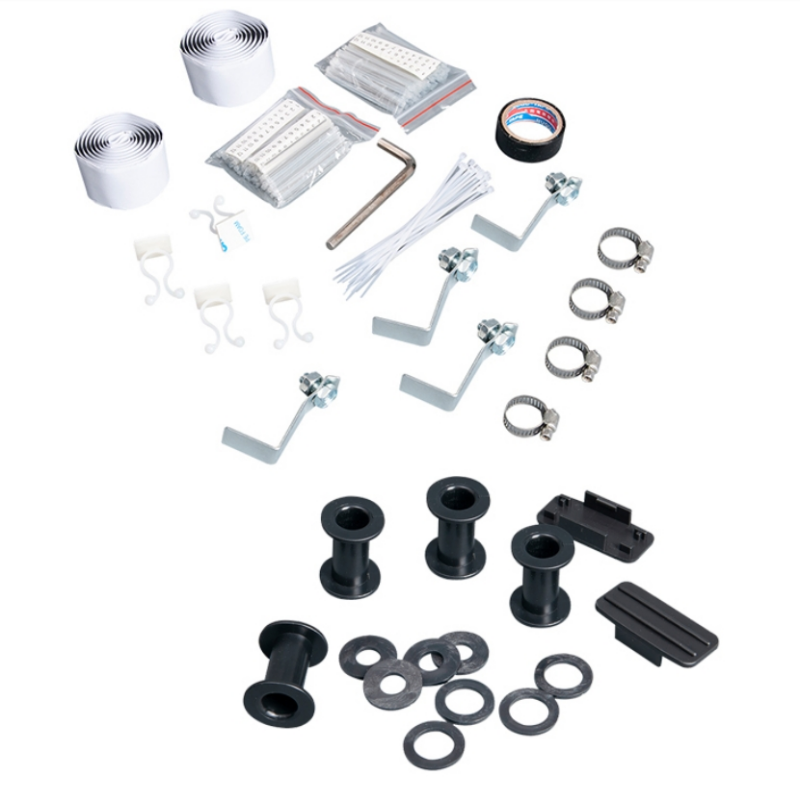

Standard Accessories
Metal spanner：1pcs
Metal hanger ：4pcs
Sealing rubber strip：2pcs
Insulating tape：2pcs
Metal ring :4pcs
Plastic ring：4pcs
Plastic plug：14pcs
Heat-shrink sleeve:1.2mm*60mm 48/96pcs
