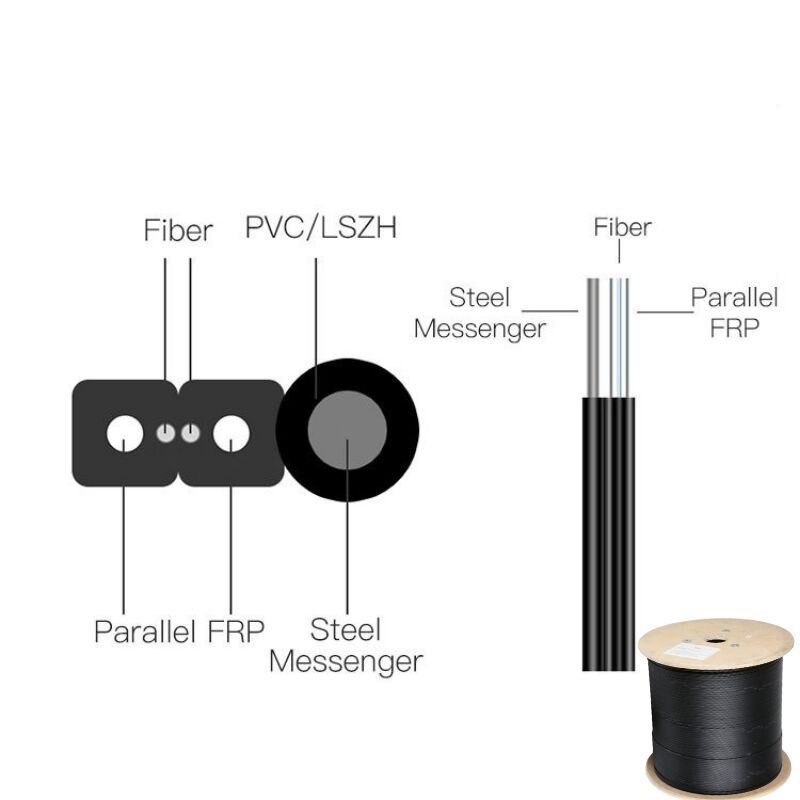

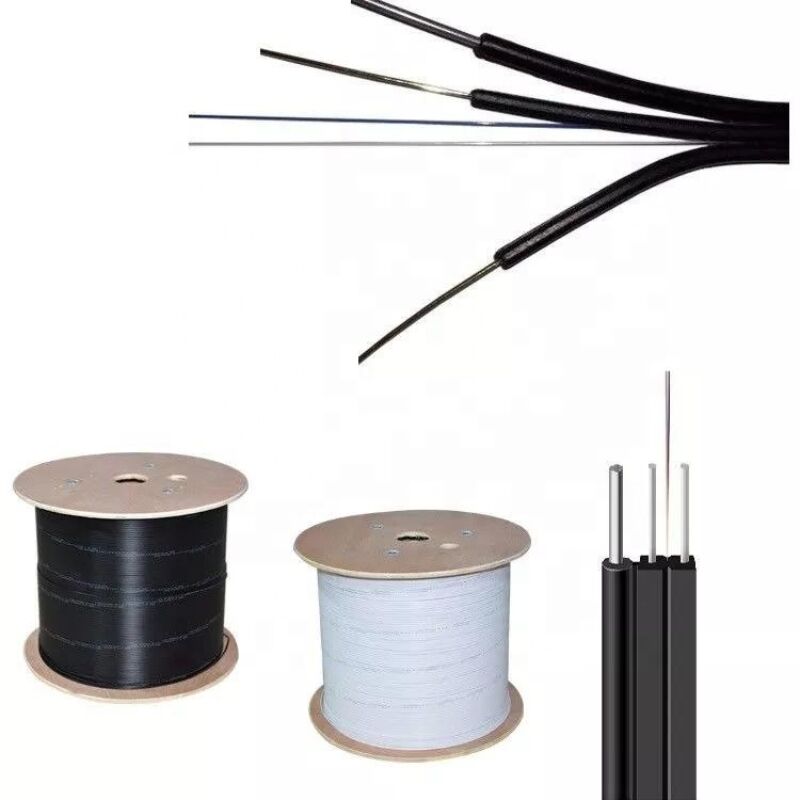

The GJYXFCH cable greatly simplifies complex network setups. You achieve faster installation using its 6.0mm diameter. Fiber protection utilizes a 250µm coating.
The FRP strength member provides excellent tensile strength. That strength rating reaches 600N. Crush resistance measures 1000 N/100 mm. The LSZH jacket promotes fire safety.
Operating temperatures span -20°C to +60°C. Employing G.657.A2 fibers ensures great bending flexibility. Minimum bending is 10D, dynamically.
Consider choosing GJYXFCH, featuring 12 distinct fibers. Signal loss measures ≤0.36 dB/km at 1310nm. Water tests show zero water after one day. Secure connections are achieved, holding well. Impact handling withstands 3 impacts, at 3.0 Nm. Duct installations are a frequent application.
Fiber counts range from 2 up to 24. The sheath presents black, resisting ultraviolet exposure. Numerous parameters define compressive behavior. Meeting guidelines is constantly maintained throughout.
| Parameter | Core Type | Outer Sheath | Strength Member | Bending Radius | Crush Load | Temperature Range |
| Fiber Standard | G.657.A2 | LSZH | Dual FRP | 10D Dynamic | 1000 N/100mm | -20°C to +60°C |
| Attenuation (dB/km) | ≤0.36 (1310nm) | Black, UV | 0.45 mm | 20D Static | 2200 N/100mm | -40°C to +70°C |
| Fiber Count | 2-24 core | PE option | Steel Wire | 7.5 mm | 300 N/10cm | -10°C to +50°C |
| Cable Diameter (mm) | 2.0 x 3.0 | Flame retard | 1.0 mm | 15 mm | 2000 N | -40°C to +85°C |
| Weight (kg/km) | ~30 | ≤ 80 Shore D | 600N Pulling | 30D Long Term | 100 N | -20°C up +60° |
| Water Blocking | Dry Yarn | Non-Cracking | 800N Tensile | 15D Short Term | 2500N | -55°C+ 85° |
| Return loss | ≥60 dB | UV safe | 1.2 mm | 5 mm | 500 N | -30°C up +65° |
Durm
| Cable type | Drum | ||||||||||
| Height (mm) | Width (mm) |
Inner diameter (mm) |
Length (km) | Drum type | |||||||

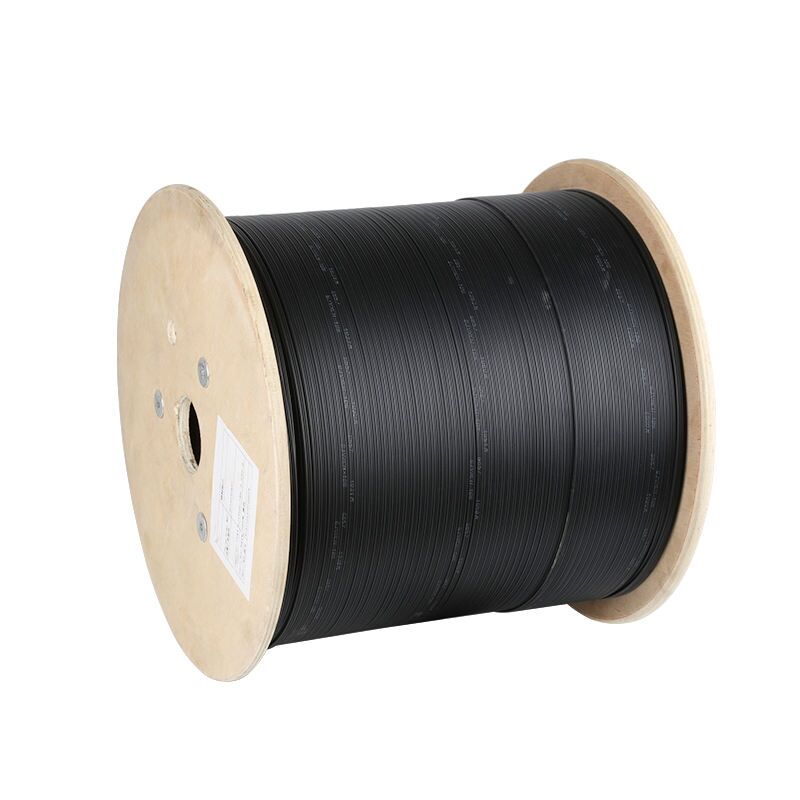

| GJYXFCH | 300 | 275 | 110 | 1 | Plywood wood drum |
||||||
