OPGW Mainly used for power communication with accessories,relay protection,automatictransmission,installation together with high-voltage lines.

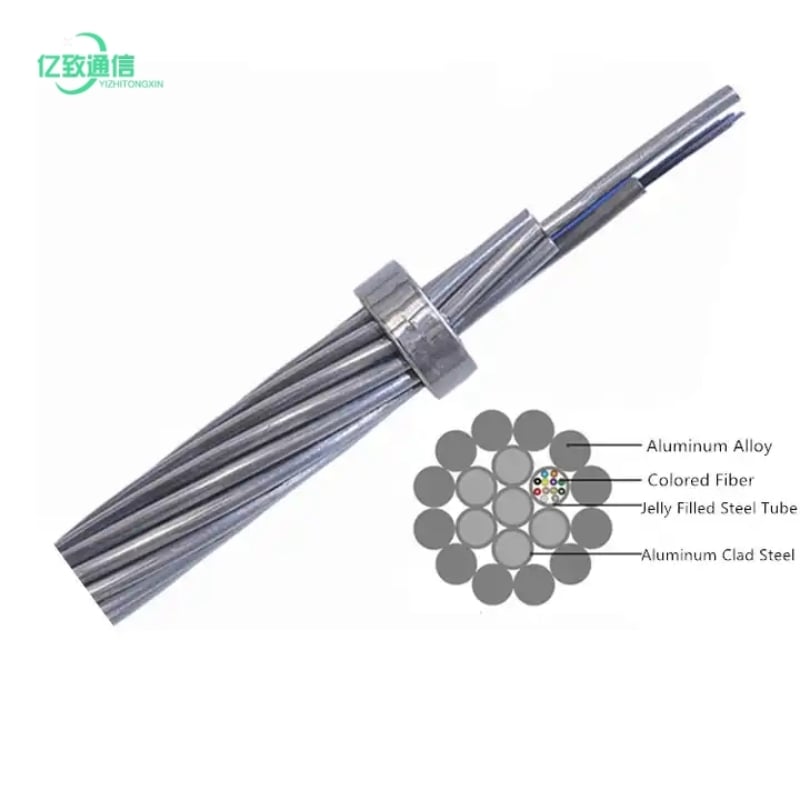

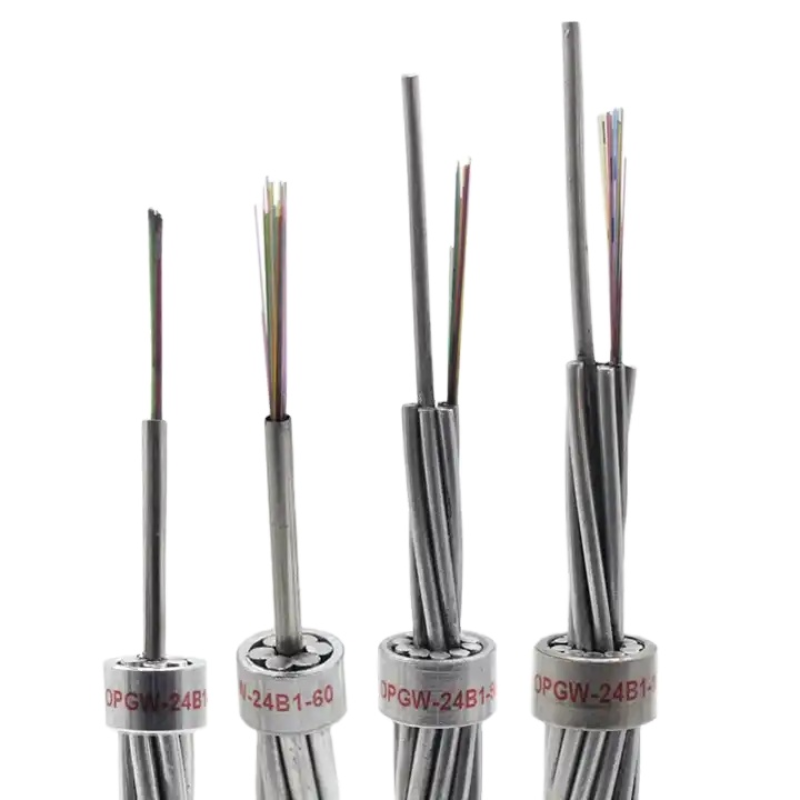

The central stainless steel tube is surrounded by single or double layers of aluminum clad steelwires(ACS) or mix ACS wires and aluminum alloy wires. are the most widely used cables .their desian isfully adapted to the most common electric line needs.
Fiber Type:G652D; G655C
Fiber Count: 12-144 Core
Replacement of existing ground wires and reconstruction of old lines
Applicable to low-grade lines, such as GJ50/70/90 and etc.
Main Features:
Small cable diameter, light weight, low additional load to the tower,
The steel tube locates at the center of the cable, no second mechanical fatigue damage
Low resistance to side pressure, torsion and tensile (single layer).
Technical Parameter:
| Specification | Fiber Count | Diameter(mm) | Weight (kg/km) | RTS(KN) | Short Circuit(KA2s) | |||||
| OPGW-32(40.6;4.7) | 12 | 7.8 | 243 | 40.6 | 4.7 | |||||
| OPGW-42(54.0;8.4) | 24 | 9 | 313 | 54 | 8.4 | |||||
| OPGW-42(43.5;10.6) | 24 | 9 | 284 | 43.5 | 10.6 | |||||
| OPGW-54(55.9;17.5) | 36 | 10.2 | 394 | 67.8 | 13.9 | |||||
| OPGW-61(73.7;175) | 48 | 10.8 | 438 | 73.7 | 17.5 | |||||
| OPGW-61(55.1;24.5) | 48 | 10.8 | 358 | 55.1 | 24.5 | |||||
| OPGW-68(80.8;21.7) | 54 | 11.4 | 485 | 80.8 | 21.7 | |||||
| OPGW-75(54.5;41.7) | 60 | 12 | 459 | 63 | 36.3 | |||||
| OPGW-76(54.5;41.7) | 60 | 12 | 385 | 54.5 | 41.7 | |||||
| Specification | Fiber Countt | Diameter (mm) | Weight(kg/km) | RTS(KN) | Short Circuit(KA2s) | |||||
| OPGW-96(121.7;42.2) | 12 | 13 | 671 | 121.7 | 42.2 | |||||
| OPGW-127(141.0;87.9) | 24 | 15 | 825 | 141 | 87.9 | |||||
| OPGW-127(77.8;128.0) | 24 | 15 | 547 | 77.8 | 128 | |||||
| OPGW-145(121.0;132.2) | 28 | 16 | 857 | 121 | 132.2 | |||||
| OPGW-163(138.2;183.6) | 36 | 17 | 910 | 138.2 | 186.3 | |||||
| OPGW-163(99.9;213.7) | 36 | 17 | 694 | 99.9 | 213.7 | |||||
| OPGW-183(109.7;268.7) | 48 | 18 | 775 | 109.7 | 268.7 | |||||
| OPGW-183(118.4;261.6) | 48 | 18 | 895 | 118.4 | 261.6 | |||||
