Connector Type : SC,FC,LC,ST
Ferrule End-face : PC, UPC,APC
Fiber Type : G652D G657A1 G657A2
Fiber Mode : SM MM
Package : Steel Tube, ABS Black Box
Structure : 1*2/1*4/1*8/1*16/1*32/1*64
Description:

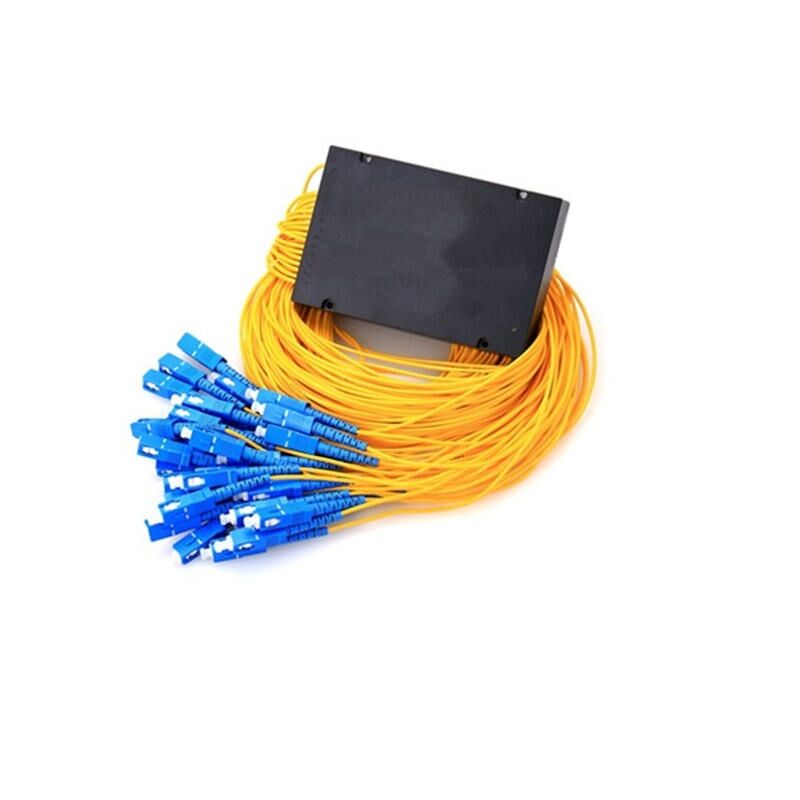

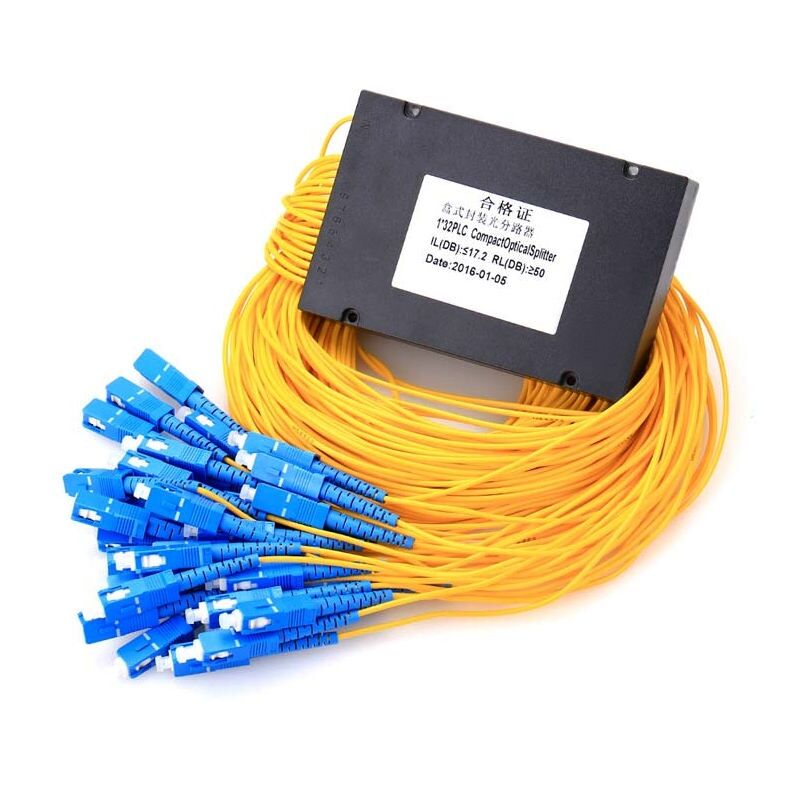

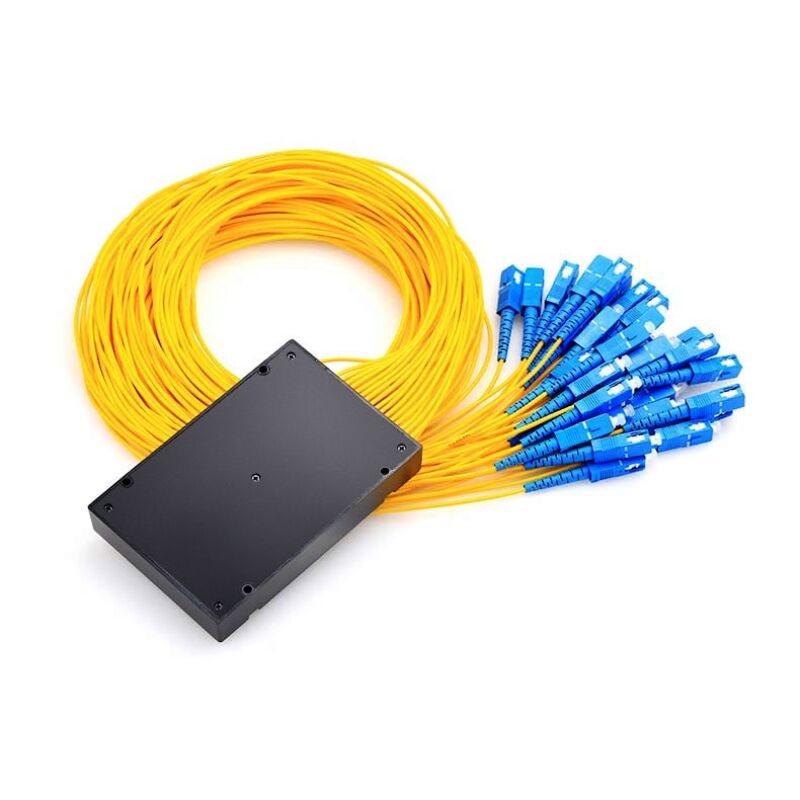

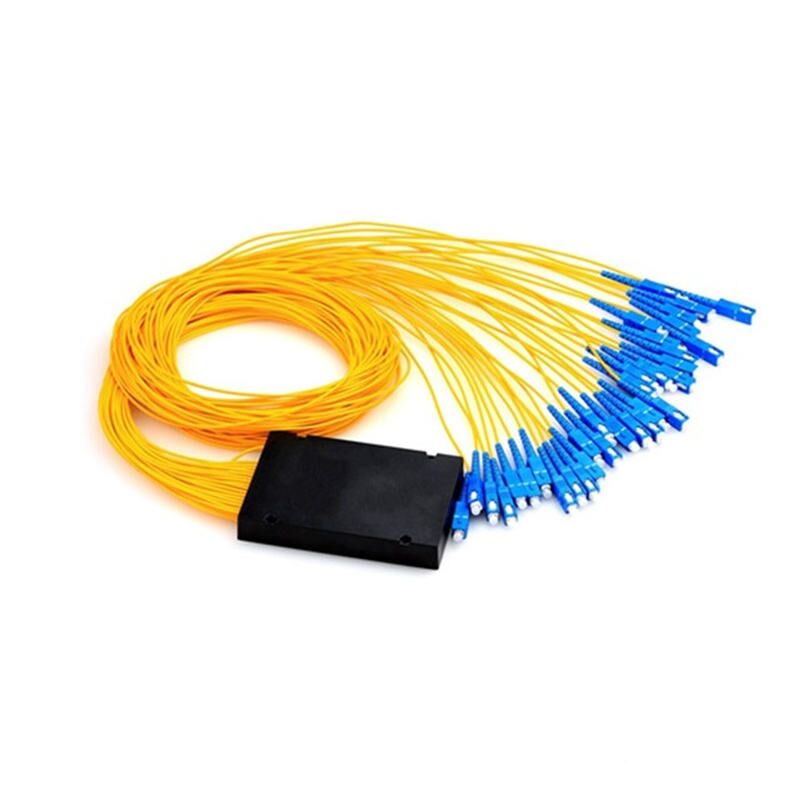

The PLC Optical Splitter is branching devices that is used to distribute optical signals to multiple locations for processing.
In optical networks, it is often necessary to split an optical signal into many identical signals, or to combine many
signals into a single signal.
PLC Optical Splitter (Planar lightwave circuit splitter) is a type of optical power management device that is fabricated using
silica optical waveguide technology. They are designed for FTTx Passive Optical Networks, CWDM, DWDM and optical cable
TV System. PLC Optical Splitter is responsible to distribute optical signals from Central Office (CO) to multiple premise
locations.We provides whole series of 1*N and 2*N PLC Optical Splitter products that are tailored for specific applications.
Specification:
Table 1 – 1×N PLC Optical Splitter
| Parameters /PLC Optical Splitter | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operating Wavelength (nm) | 1260～1650 | |||||
| Fiber Type | G657A or customer specified | |||||
| Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 |
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40～85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40～85 | |||||
| Storage Temperature (℃) | -40～85 | |||||
| Package | Steel Tube or ABS | |||||
