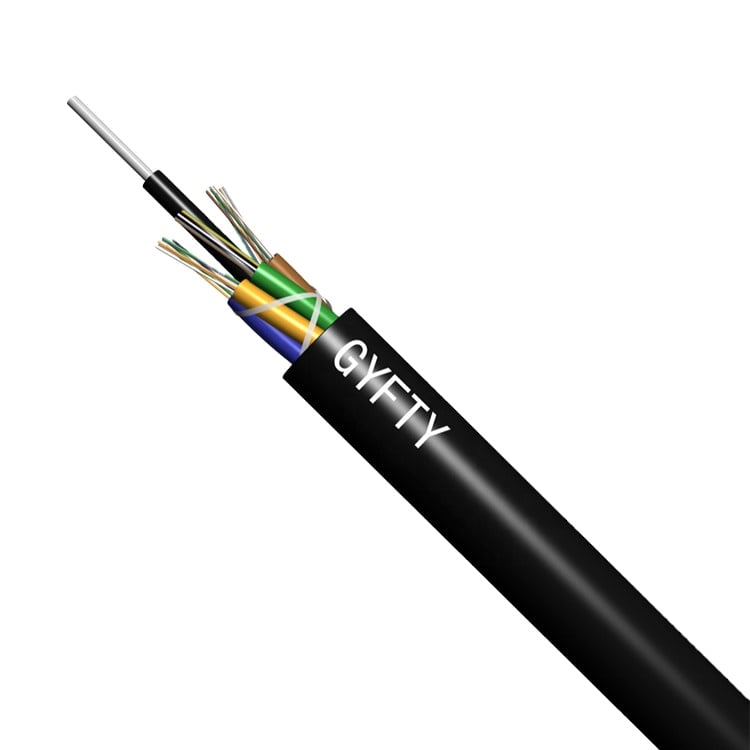

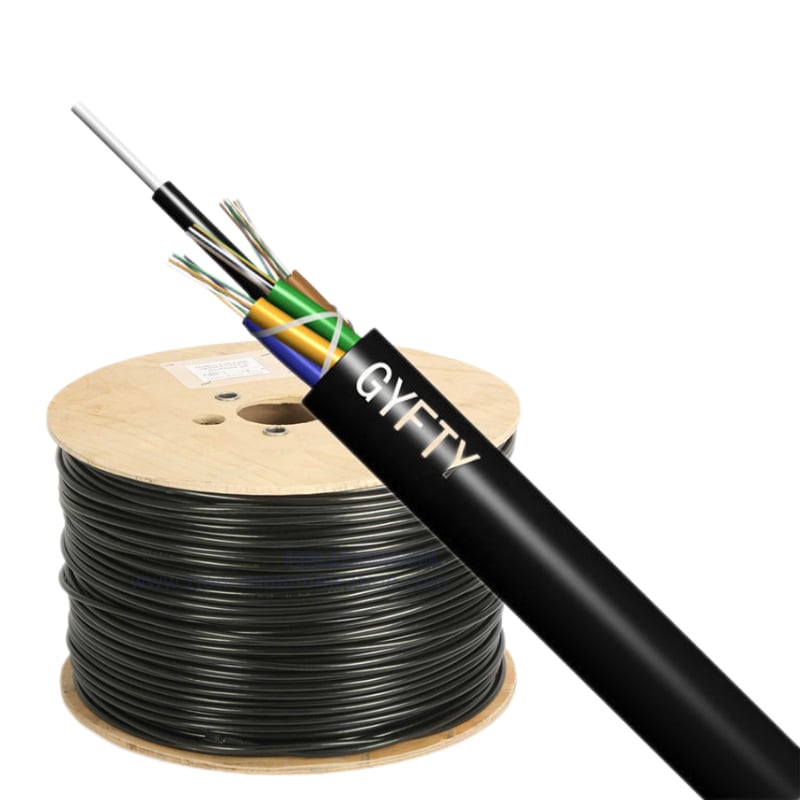

Outdoor 2-288 Cores GYFTY & GYFTY53 & GYFTY63 Outdoor Fiber Optic Cable

Excellent mechanical properties and temperature characteristics.

The loose tube material has good hydrolysis resistance and high strength.

Special gel fills the tube, providing critical protection for the fibers.

A compact cable structure effectively prevents tube shrinkage.

Good compression resistance and flexibility.

The PE sheath offers excellent UV and radiation resistance.

The special gel ensures the cable’s waterproof performance.

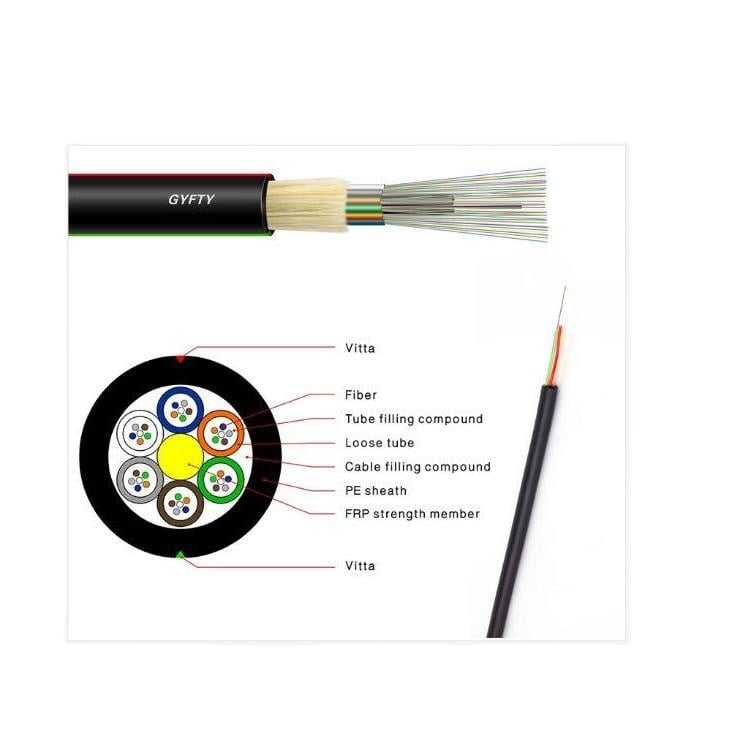

Product Construction:

Fiber: 2-288fibers

250µm colored fiber

Multi-loose tube gel-filled

Central Strength Member: Fiberglass reinforced plastic (FRP)

Outer Jacket: Black UV and waterproof polyethylene (PE).

Features:

All dielectric structure Up to 288 fibers.

Loose tube gel-filled construction for superior fiber protection.

Overall fiberglass reinforced yarn provide high tensile strength.

UV and waterproof design.

Applications:

Inter building voice or data communication backbones.

Installed as ducts, underground conduits and direct buried.

OPTICAL CHARACTERISTICS：

Fiber count	Nominal Diameter(mm)	Nominal Weight(kg/km)	Max FiberPer Tube	Max No. of(Tubes+fillers)	Allowable Tensile Load(N)		Allowable Crush Resistance (N/100mm)
					Allowable Tensile Load(N)		Allowable Crush Resistance (N/100mm)
					Short Term	Long Term	Short Term	Long Term
2~36	10.2	85	6	6	1500	600	1000	300
38~72	11.1	100	12	6	1500	600	1000	300
74~96	12.6	130	12	8	1500	600	1000	300
98~120	14.1	162	12	10	1500	600	1000	300
122~144	15.9	204	12	12	1800	600	1000	300
146~216	15.9	205	12	18(2 layers)	2200	600	1000	300
144	Available upon customer request
