Insertion loss : IL<0.2db, no more than 0.3db, ≤ 0.3dB, >5, ≤0.2 dB
Tensile strength : >50N
Return loss : > 55db, ≥50dB, max.50dB (SC/APC), ≤-40dB, more than 55db
Application : FTTH FTTB FTTX Network, CATV, to make patch cord, Telecommunication
Connector type : SC, SC/APC, 12 and 24 fiber connector, LC, MT based Multi-fiber Connector
Connector : LC, SC Fiber Optic connector, SC/FC, Fast Connector SC APC, FC
Fiber type : SM, SM or MM, G657A1, G652D, SM/MM
Operating temperature : -40°C ~ +80°C, -40 to +85 degree, -40~75℃, -45 to +85
Insert loss : less 0.1DB, <0.2dB, ≤0.3dB
Fiber cable type : 3x2mm Flat cable, 2.0mm 3.0mm cable, 3mm Drop cable, 3.1*2.0mm Butterfly Optical Cable Weight 3.2g, 0.5Kg/pack
Specification
Applicable Cable |
2*5.0mm/2*3.0mm/2.0*1.6mm |
Fiber Diameter |
125um |
Coating Diameter |
250um& 900um |
Fiber Mode |
single mode |
Insertion Loss |
Average ≤0.3 dB, max ≤0.5 dB |
Return Loss |
UPC≥45dB APC≥50dB |
Tensile Strength |
50N |
Impact Test |
Average ≤0.3dB, max ≤0.5dB |
Mechanical Endurance |
500 Times |
Vibrate Test |
Average ≤0.3dB, max ≤0.5dB |
Thermal Cycle Test |
Average ≤0.3dB, max ≤0.5dB |
Operating Temperature |
-40°C~+75°C |
Length |
52mm ( without cap） |
Fast fiber optic connector can provide a quick and easy termination of fibers in the field and options are available
for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch
panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens

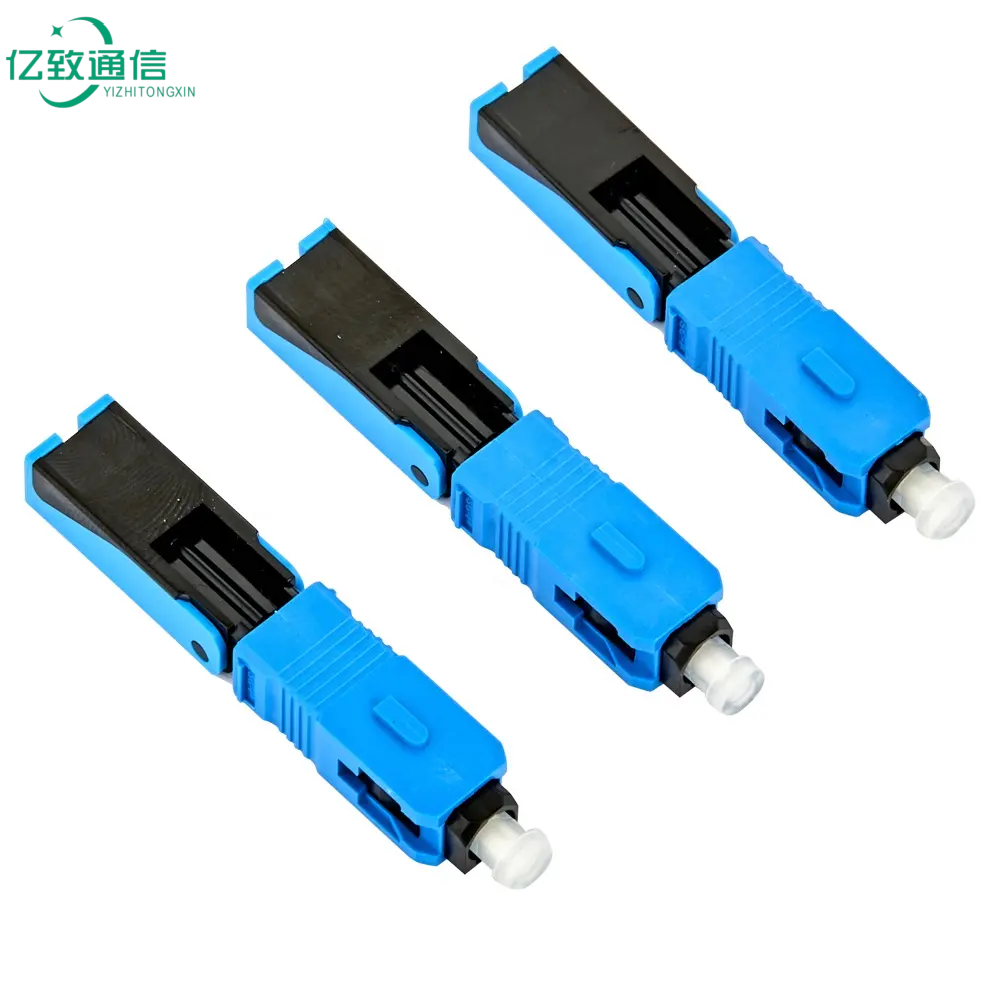

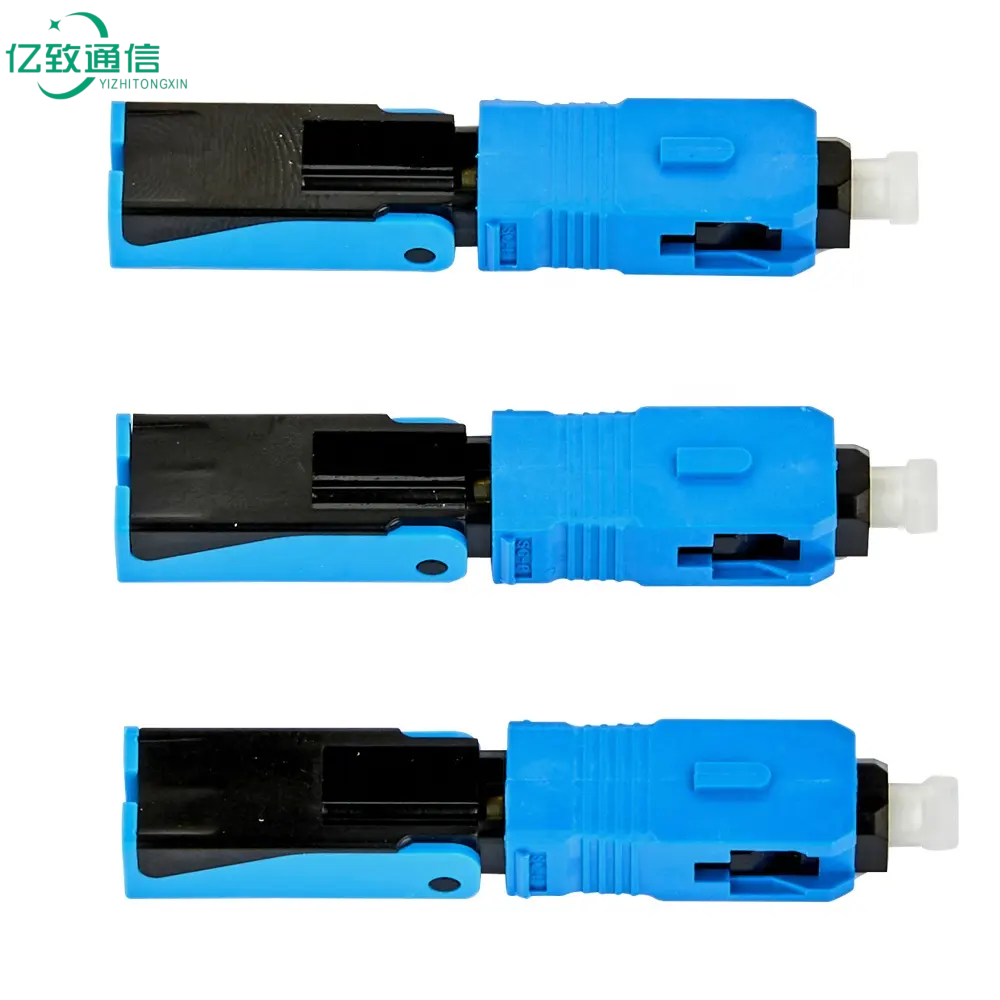

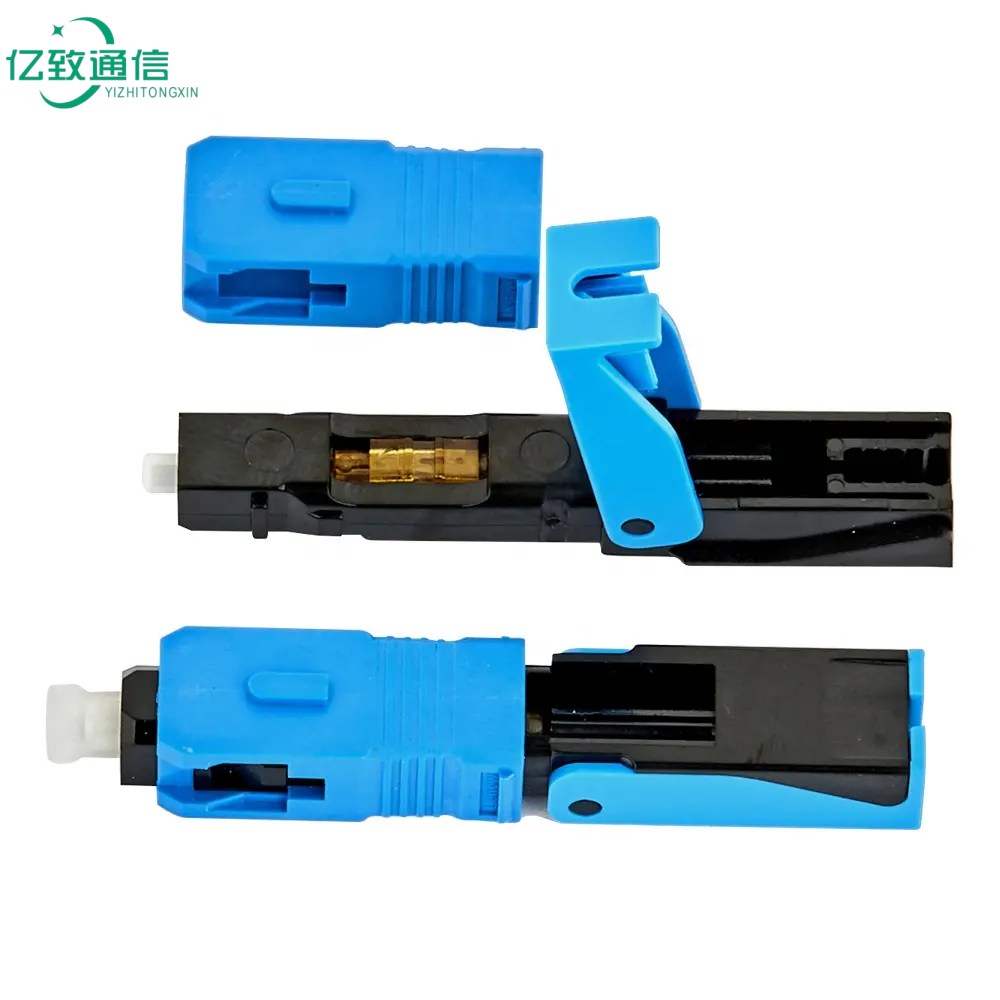

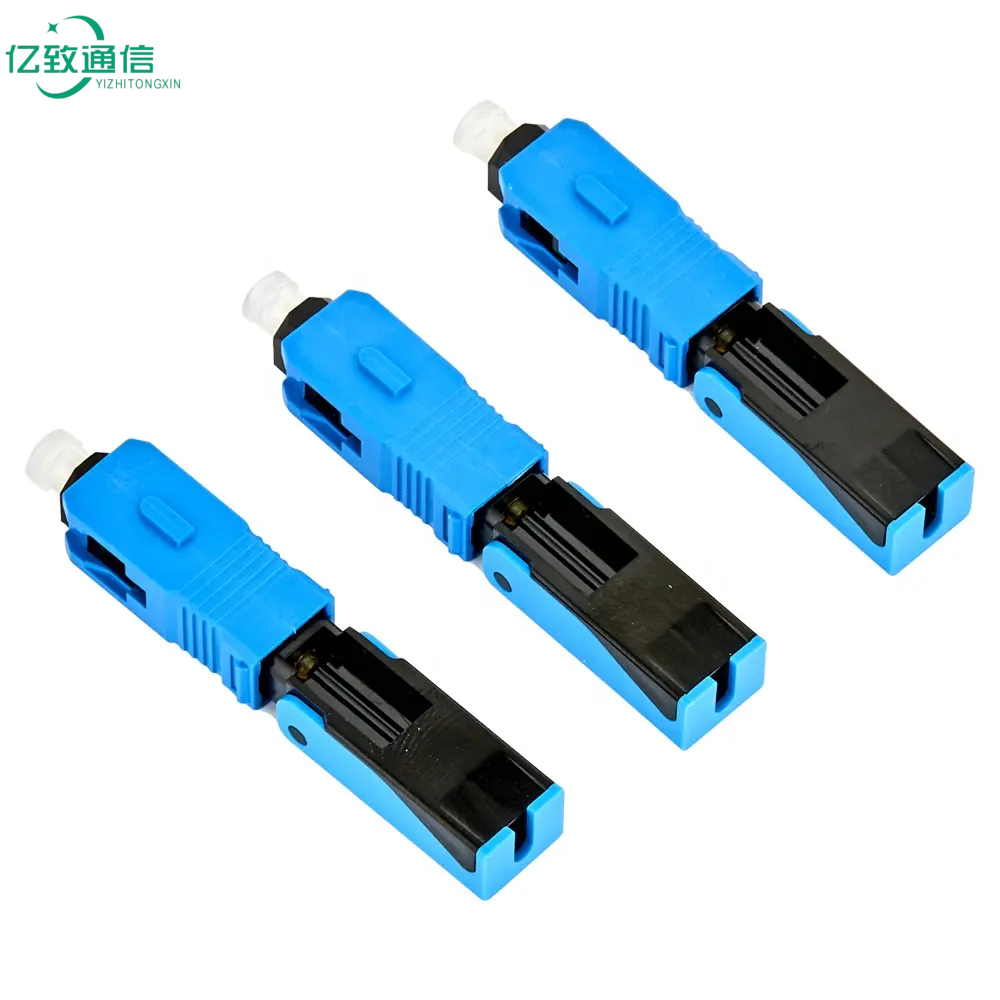

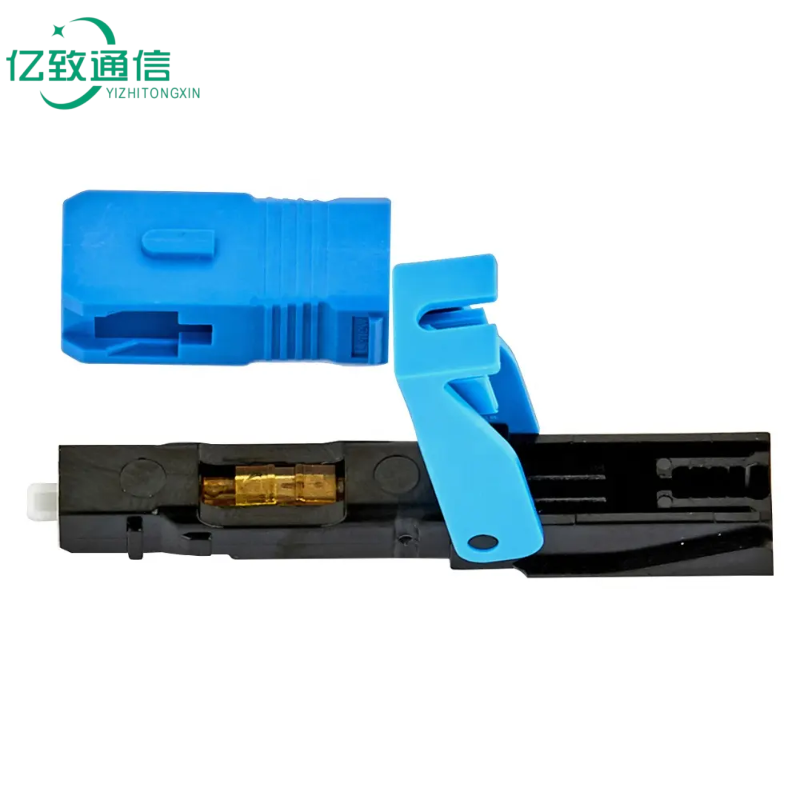

SC quick assembly connector has easy assembly and excellent stability.
Ferrule Hole Sizes:
Singlemode
125.0+1/-0um, concentricity<=1.0um
125.5+1/-0um, concentricity<=1.0um
126.0+1/-0um, concentricity<=1.0um
Multimode
125um concentricity <=3um
127um concentricity <=3um
128um concentricity <=3um
