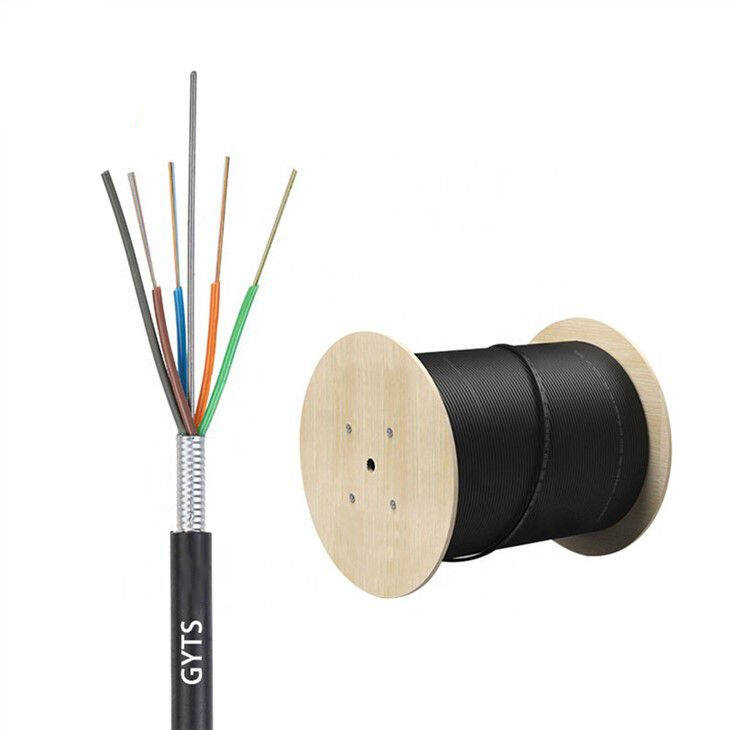

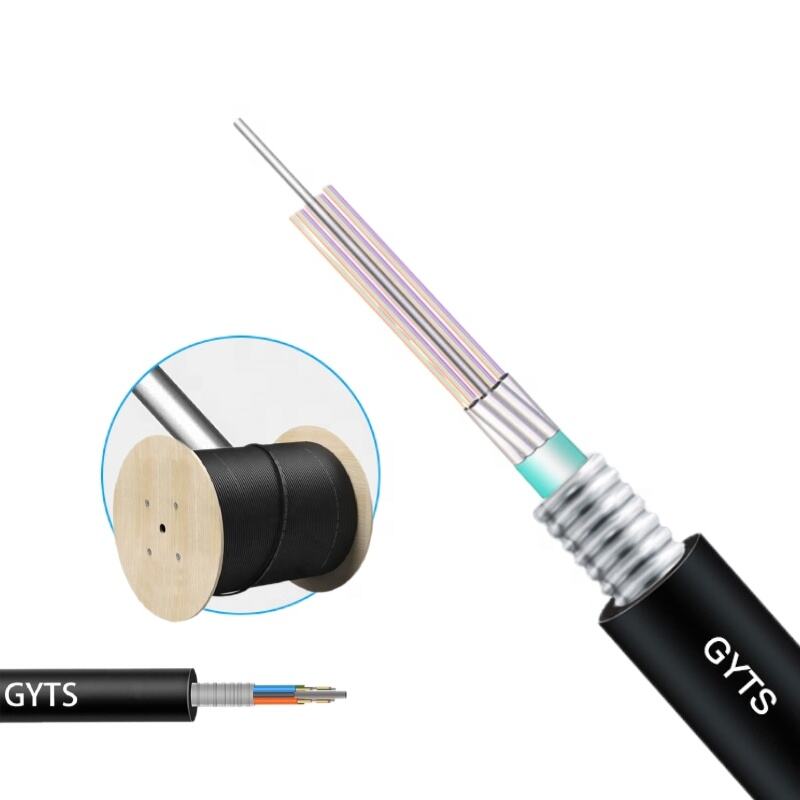

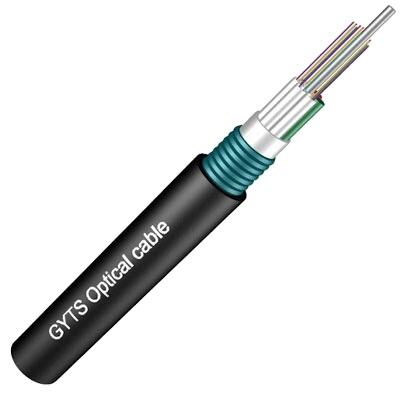

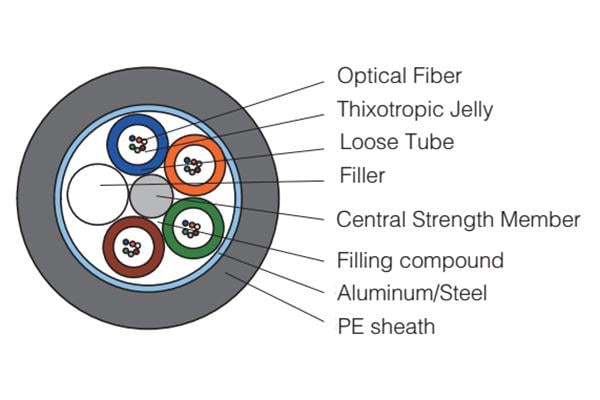

Single Jacket Non-Armored cables are lightweight with small diameter and designed for duct and aerial installation with lashing method. The loose tube stranded around central strength member. The cable core is protected with jelly to prevent water intrusion and migration, An Aluminum Polyethylene Laminated as moisture barrier. And cover with a black Polyethylene out jacket.
Product details：
Fiber: 2-288fibers
250µm colored fiber
Multi-loose tube gel-filled
Steel Tape Armored
Central Strength Member: Fiberglass reinforced plastic (FRP)
Outer Jacket: Black UV and waterproof polyethylene (PE).
Features:
All dielectric structure Up to 288 fibers.
Loose tube gel-filled construction for superior fiber protection.
Overall fiberglass reinforced yarn provides high tensile strength.
UV and waterproof design.
Applications:
Inter building voice or data communication backbones.
Installed as ducts, underground conduits and direct buried.
| Feature | 2-12 Core | 24-48 Core | 72-96 Core | 144-216 Core | 288 Core |
| Fiber Type | G.657.A1 | G.652.D | G.657.A2 | G.652.D | G.655 |
| Central Strength | 1.2mm Steel | 1.6mm FRP | 1.8mm Steel | 2.0mm FRP | 2.4mm Steel |
| Crush (N/100mm²) | 1000 N | 1500 N | 2200 N | 3000 N | 4000 N |
| Sheath Material | MDPE Black | HDPE Black | HDPE UV | LSZH Black | LSZH UV |
| Tube Material | PBT 2.0mm | PBT 2.2mm | PBT 2.5mm | PBT 2.8mm | PBT 3.0mm |
| Outer Diameter(mm) | 8.5 mm | 9.8 mm | 10.5 mm | 12.8 mm | 15.5 mm |
| Weight (kg/km) | 85 kg | 110 kg | 135 kg | 180 kg | 240 kg |

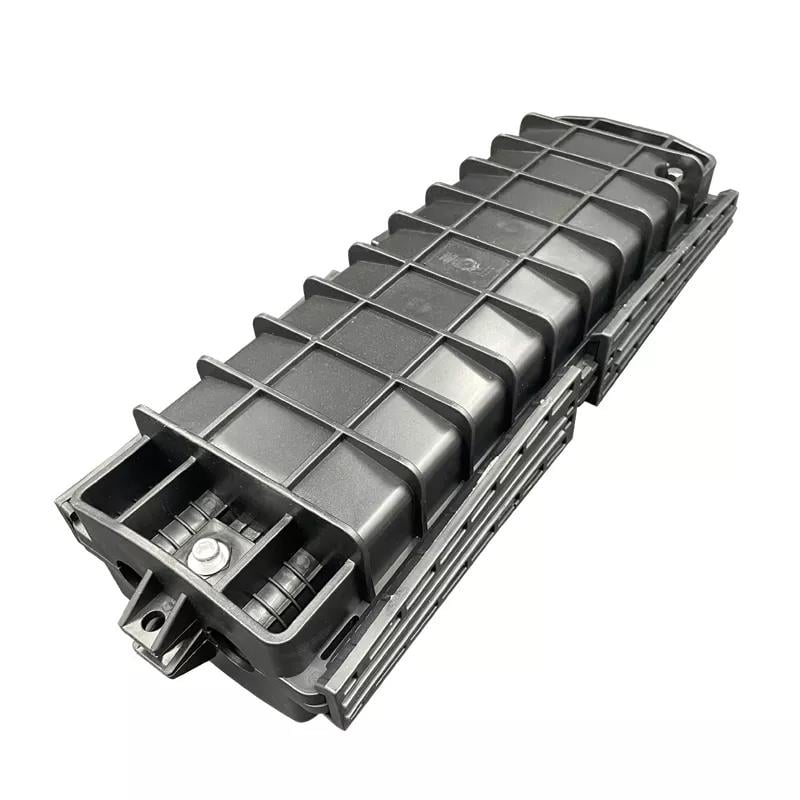

48/96 Core Fiber optic Closure(2 in 2 out)
PVC Jump Cable LC Pigtail Fiber Optic 1~ 144 core for Data processing networks
AI 100 megabit 4+2 isolation POE switch

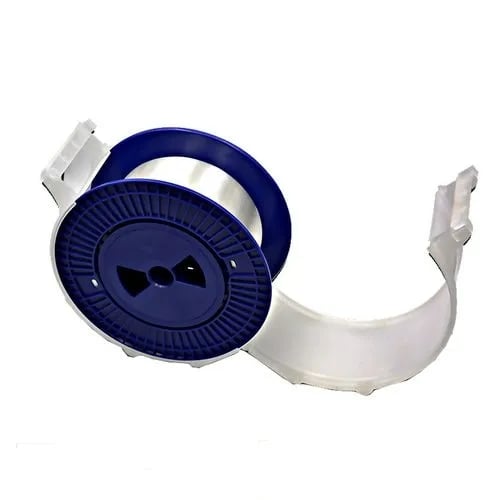

YZ G.654 Low-loss & Bend-insensitive Optical Fiber
