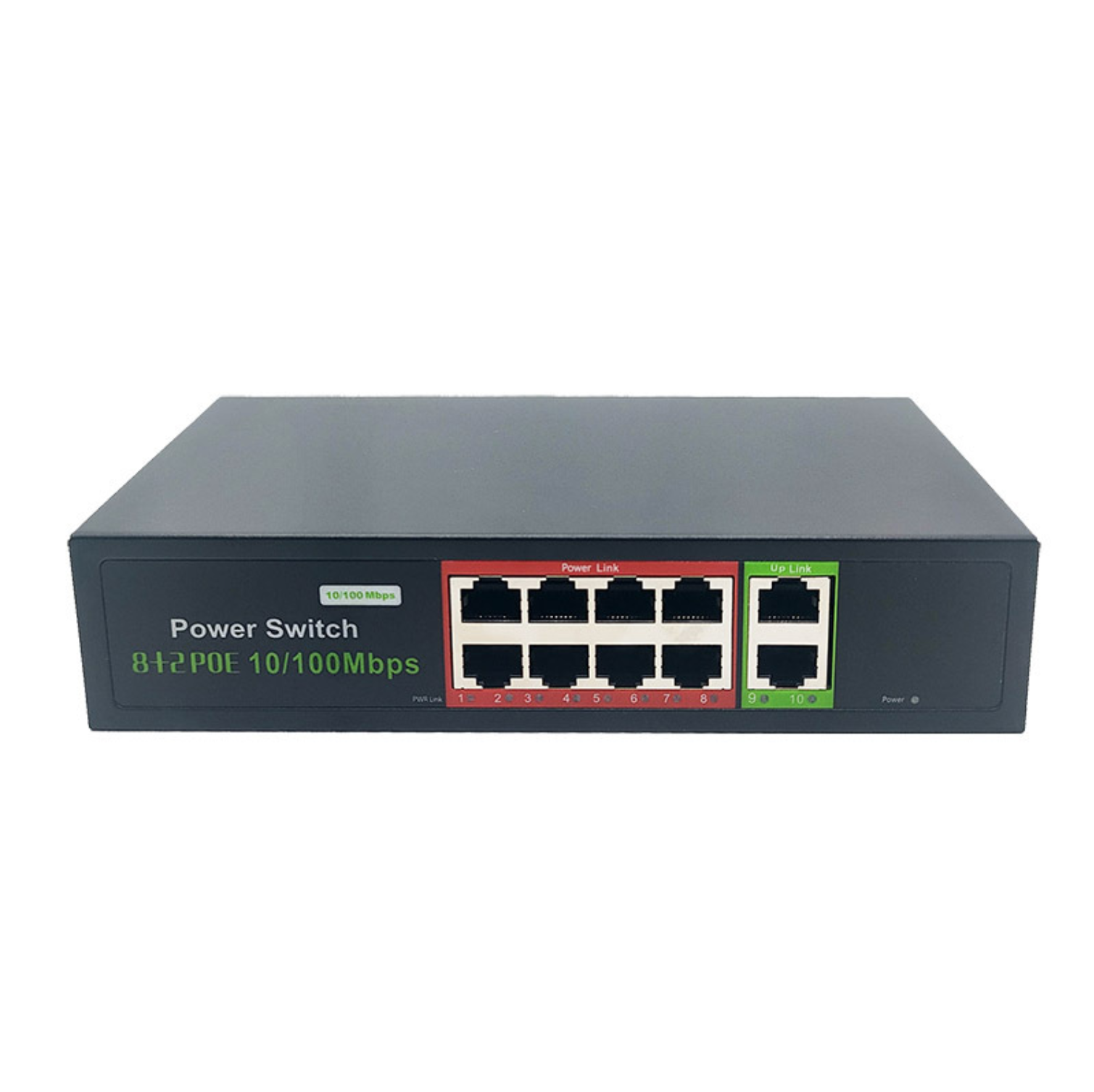

Essential Components of a POE Switch
Power Sourcing Equipment (PSE)
The Power Sourcing Equipment (PSE) is an essential element of a POE switch system that sends power over the Ethernet cable. It helps power multiple devices at the same time, and also helps improve network efficiency, saving on costs by using less outlets. Examples of PSE devices include Ethernet switches and midspan injectors. Endspan PSEs (Ethernet Switches)Endspan PSEs or Ethernet switch delivers power and data from one port and does not require additional hardware components. Where there are switches that do not provide power over Ethernet, but do have dipole headroom, midspan injectors are deployed to act for power between switches and power devices. By demonstrating their performances, these devices contribute significantly to the smooth operation of network configurations by improving power managements and connectivity needs.
Powered Devices (PD)
Powered Devices (PD): In a POE system, these are the devices at the receiving end receiving power through the Ethernet cable from the Power Sourcing Equipment (PSE). Such devices include IP cameras, VoIP phones, and wireless access points, all of which require POE to function. As they are wired with Ethernet cables, users can do away with extra power supplies. In recent network structures PDs are becoming more and more important because of the growing interest for IoT and smart applications. With companies and households incorporating more connected devices, dependence on PDs is rising, highlighting their importance in building efficient and scalable network infrastructures that will enable numerous digital transformations.
Ethernet Cable Requirements
POE systems are based on Ethernet cables, so the type you choose is very important. Cat5e, Cat6 and Cat6a, for example, are all compatible with POE and can accommodate a range of data rates and power levels. Although Cat5e can support up to 1Gbps of data speed, Cat6 and Cat6a have higher bandwidth and delivers improved performance for all your high-demand applications. Power transmission is highly dependent on cable length, with an effective working range of up to 100 meters. High quality cables are a must to avoid any loss of power, as low grade cables will cause voltage drops and therefore can reduce network efficiency. Quality cabling ensures maximum power feed and data signaling, providing a solid foundation for a network with stable performance.
IEEE Standards and Power Delivery
802.3af (PoE) Specifications
IEEE 802.3af is the base standard for Power Over Ethernet systems, offering up to 15.4 watts on a port. Though with its limitations, 802.3af brings remarkable improvement to the network devices with low power needs like VoIP phone, and simple IP camera. The applications can run without extra power source and it makes cable management easier and simpler. Market stats show IEEE 802.3af has gained a lot of momentum since its introduction, as it simplifies network implementations and lowers installation costs. The standard has been universally accepted by all kinds of professional stakeholders from various types of industries, which demonstrates its importance in enabling critical network equipment.
802.3at (PoE+) Advancements
Extending the functionality of 802.3af, the industry standard for PoE, the NETGEAR ProSAFE GS728TP gives up to 30W of power output per port that are ideal for high power devices such as PTZ dome network cameras, access points, video phones, and touch panels. This is a next generation unit that has higher quality and performance - it has higher power and prolonged usage capacity for more high power consuming applications such as High-Definition, and IP cameras, and access points. PoE+ deployment within enterprise networks has noticeably increased, is evident from statistical evidence, which demonstrates growing popularity due to its suitability for power-efficient and more powerful devices. All these developments have led to the more efficient use of the network and a better user experience.
802.3bt (PoE++) Capabilities
This latest standard, referred to as PoE++, provides a massive increase to the maximum power available to PoE devices by offering up to 60 watts for Type 3 devices and up to 100 watts for Type 4 (and soon, a new third Type 5) applications. Ideal for power devices requiring high performance such as advanced video conferencing systems and high performance wireless access points, important in smart building technologies. PoE++ opens the doors to what is possible for network installations, setting the stage for the future of interconnected digital ecosystems. As these specifications develop, the prediction illustrates the central role they play in enabling the development of smarter, more efficient network solutions.
Network Infrastructure Considerations
Cable Types and Length Limitations
Selecting the right cable type for PoE (Power over Ethernet) transmission is critical in maintaining the overall system's efficiency. Most people seem to agree that to ensure that data is transferred and power provided at optimal levels, Cat5 or better cable (Cat6 is better) should be used. The IEEE specifications state that the longest power over Ethernet cable should be 100 meters. Going above that can affect power and data integrity, and cause chaos. Similarly, if the cable runs longer than this, if only by five meters, you may experience loss starve or voltage drop. To address these issues, the addition of Ethernet extenders can keep performance when distances are longer.
Integration with Fiber Optic Backbones
PoE switches with fiber optic network can greatly improve network reliability. Combining the two allows us to have more bandwidth and lower latencies, which of the utmost importance for today’s enterprise. While PoE installations provide flexibility, fiber optic cables are tough as nails and serve as solid backbones, transmitting data over long distances at high speeds. Real-life examples exhibit that this integration lead to enhanced network scalability and efficiency for companies. For example, in high traffic applications such as data centers, PoE integrated with fiber optics allows for high-speed data transport while being able to support the expansion of large scale needs.
Choosing the Right POE Switch
Assessing Device Power Needs
When determining the appropriate PoE switch, understanding device power requirements is critical. Knowing the total power needs will help to determine the proper PoE switch power budget that it’s needed, so all devices can receive the necessary power, and don’t downgrade the network performance. To achieve this you can calculate the power consumption of all the devices and verify if that total can be provided by the switch's power budget. Not doing so can cause insufficient power supply, which may cause network failures or device malfunction. For instance, if a PoE+ camera is plugged in an switch whose PoE standard is not PoE+, it may not work as it should if it doesn't get enough power, so that's definitely one to the power budget.
Future-Proofing with Higher Standards
When thinking ahead to the future and about how to future-proof your network infrastructure, be sure to pick PoE switches that conform with higher power supply categories like PoE+ or PoE++. With the advancing of technology, the more power is often needed to run the devices optimally. This feature can help save you upgrading costs later down the line as the current standard is being replaced. For example, PoE++ switches can provide as much as 90 watts per port, ideal for high-power devices such as pan-tilt-zoom cameras or LED lights. When choosing such switches, make sure that you consider features such as increased data throughput, scalability as well as robust security features which will not only improve your current networking architecture but will also offer protection against future changes and threats.
FAQ
What is the role of Power Sourcing Equipment in a POE system?
Power Sourcing Equipment (PSE) is responsible for delivering power over Ethernet cables to multiple devices, maximizing network efficiency by centralizing power distribution.
Which standards support high-capacity devices in a POE network?
IEEE 802.3bt standard, or PoE++, supports up to 100 watts for high-performance devices, making it ideal for high-capacity network installations.
Why is cable length critical in a POE network?
Cable length is crucial because exceeding the 100-meter limit can result in signal degradation and power loss, compromising network efficiency.
How does integrating PoE with fiber optics enhance network infrastructure?
Integration with fiber optics boosts network performance by increasing bandwidth and reducing latency, complementing PoE installations with robust communication backbones.
