How to Choose the Right PLC Splitter for Your Network Needs

PLC Splitter Fundamentals and Key Specifications

Role of PLC Splitters in Network Infrastructure

PLC splitters play a key role in getting those optical signals where they need to go throughout fiber optic networks. What makes them so valuable is their ability to make sure bandwidth gets used properly instead of wasted. When it comes to Fiber to the Home setups, these little devices let one fiber line serve multiple homes at once. That means service providers can connect dozens of residences without running separate lines for each. Real world tests show that networks using PLC splitters tend to have better signal quality too. Signals stay stable over longer distances and data moves faster since there's less delay between sending and receiving information. This matters a lot for things like streaming video or online gaming where even small delays can ruin the experience.

Critical Specs: Split Ratio and Insertion Loss

When looking at PLC splitters, there are two main specs worth paying attention to: split ratio and insertion loss. Split ratio basically tells us how the incoming light gets divided among the output ports. Common setups include things like 1x2, 1x4, or even 1x16 splits. The actual number matters because it directly impacts how strong the signals come out on each port, which then affects what kind of network setup we can actually achieve. Insertion loss is another important factor to consider. This measures how much signal gets lost going from input to output. Most PLC splitters will show somewhere between 3 and 6 dB of loss. Generally speaking, lower numbers here are better since they mean less signal degradation overall. Networks perform much better when this loss stays minimal, making equipment run smoother without constant signal issues.

PLC Splitter Package Types Compared

Bare Fiber vs. ABS vs. Cassette Designs

Looking at different PLC splitter designs shows that each comes with its own set of pros and cons depending on what the network actually needs. Bare fiber options stand out because they give installers the freedom to do custom splicing right at the job site. These models save space too, which makes them pretty cost effective especially when working in tight spots where room is limited. The downside though? They need extra care during installation since those exposed fibers can get damaged easily if not handled properly. A lot of technicians find themselves wrestling with this issue when setting up systems in older buildings or industrial areas where space just isn't plentiful.

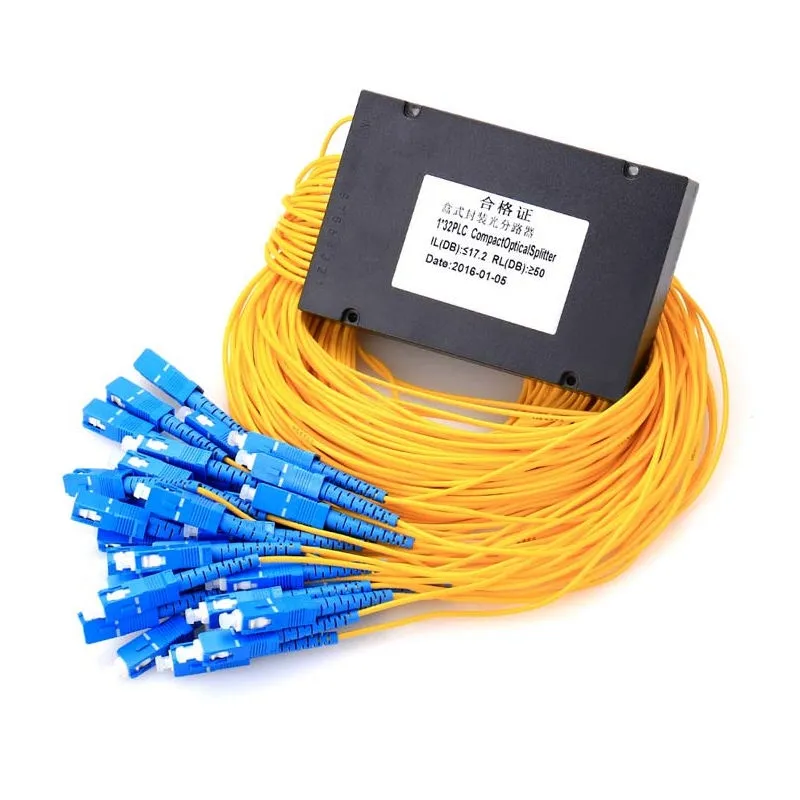

ABS PLC splitters come wrapped in tough plastic casings that stand up pretty well against whatever Mother Nature throws at them. They work great in rough environments where things tend to break down quickly. The way these ABS units are built actually keeps the inside parts safe from damage, which means they can handle being installed outside without much worry. What really matters here is that combination of solid physical protection plus good temperature handling abilities. Together, these features make sure the splitters keep working reliably even when faced with all sorts of weather and environmental challenges over time.

In contrast, cassette splitters excel in installations requiring neatness and easy maintenance. They provide an organized way to manage cables, fitting seamlessly into equipment racks. Cassette designs add aesthetic value and practical benefits, such as quick accessibility for maintenance, enhancing both the functionality and appearance of network installations.

Rack-Mount and Mini Tube Applications

Rack mount PLC splitters come into their own when it comes to scaling up operations without eating up floor space, which makes these devices essential for modern data centers. These units pack a surprising amount of connectivity into tight spaces, sometimes cramming as many as 64 ports into just one rack unit. The space savings matter a lot in facilities packed with servers where every square inch counts. For IT managers dealing with growing demands but limited room, this kind of compact solution can be a game changer while still maintaining reliable connections across all those ports.

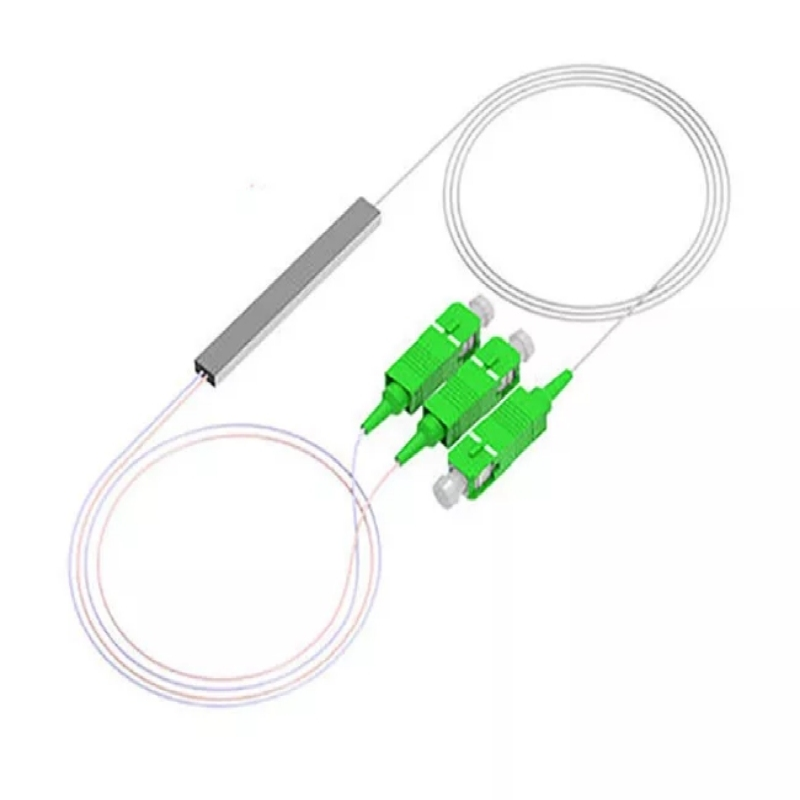

For smaller installations, mini tube PLC splitters offer exceptional portability and ease of integration. Their compact form is ideal for spaces with limited room for extensive network infrastructure. Mini tubes fit well into existing systems without extensive modifications, a benefit for applications that require minimal disruption during installation.

Several examples illustrate these applications' efficacy. Data centers, demanding high density and organized cabling solutions, favor rack-mount splitters. Conversely, smaller establishments or distributed network setups, which prioritize ease of use and flexibility, frequently employ mini tube solutions to meet their specific networking needs.

Environmental and Network Requirements Assessment

Bandwidth and Connectivity Needs Evaluation

When looking at what kind of bandwidth a network needs, there are some basic things to consider first. The main thing is figuring out how many people will be using the system and what sort of data traffic they'll generate over time. Getting this right matters a lot since it determines whether we need a small or large PLC splitter for the job. Most industries rely on certain guidelines when setting up these systems. Take telecom companies for instance they follow rules established by groups like ITU-T for Passive Optical Networks. These standards help make sure everything works together properly across different setups. We're seeing bandwidth consumption go up all the time lately. People just want to stream videos everywhere and access stuff from the cloud constantly. That means network designers have to build systems that can handle unexpected spikes in usage without breaking down completely.

Temperature and Physical Space Factors

How sensitive PLC splitters are to temperature changes really affects both their performance and how long they last. The places where these devices operate need temperature control if we want them to work at their best level. Most manufacturers specify an operating range between minus 5 degrees Celsius up to plus 70 degrees Celsius for optimal results. Space considerations matter too when installing these components. There needs to be enough room for cooling systems and easy access for maintenance checks so everything runs smoothly over time. Data center operators tell similar stories about this topic. They've found through experience that getting the environment right makes all the difference for keeping infrastructure reliable year after year. That means matching available physical space with good thermal management practices becomes essential for anyone dealing with these types of equipment installations.

Performance Parameters and Quality Indicators

Testing Metrics: WDL, PDL, and Return Loss

When looking at how good a PLC splitter really is, there are several important numbers to check out first. The main ones include Wavelength Dependent Loss (WDL), Polarization Dependent Loss (PDL), and Return Loss. For WDL, basically what happens is when light moves through different wavelengths, there's some signal loss. Techs test this by sending various wavelengths through the splitter and then measuring how much power actually gets through on the other side. Then we have PDL, which looks at how much signal drops off depending on the light's polarization state. This matters because without proper PDL control, splitters might work fine with one type of fiber but fail completely with another. And let's not forget Return Loss either. This tells us how much light bounces right back to where it came from instead of going forward through the network. High return loss means problems down the line. Industry groups such as IEEE have established strict guidelines around these measurements so manufacturers know exactly what counts as acceptable performance for their products to function properly in real world networks.

Certification and Long-Term Reliability Checks

Getting proper certification matters a lot when it comes to keeping PLC splitters performing well over time. When manufacturers get their accreditation, it means they've gone through strict testing processes that prove these components actually meet industry requirements and work reliably across many different conditions. Testing looks at things such as how well splitters handle extreme temperatures and whether they stay structurally sound during regular usage. We've seen plenty of cases where companies skipped on certification only to face major network problems later on. These incidents really show why going through proper quality control makes sense. Companies that choose certified products save themselves from expensive downtime situations down the road while also making sure everything runs smoothly across their entire network infrastructure. Quality control isn't just paperwork it's essential for anyone working with fiber optic systems.

Installation and Maintenance Best Practices

Splicing and Cable Management Guidelines

Good splicing methods along with solid cable management make all the difference when it comes to getting the most out of PLC splitters. Fusion splicers stand out as must-have equipment for creating those clean connections that minimize signal loss while keeping fiber optic networks reliable over time. When technicians take care to line up fibers just right during installation, they're setting things up for better long term results. What many overlook is how important proper cable management really is. A well organized system not only extends the lifespan of cables but also keeps everything looking neat and manageable. Less clutter means fewer accidental bends that could damage delicate fibers. Industry data from the Fiber Optic Association backs this up showing that following good installation practices cuts down on failures by around 30%. That statistic alone should convince anyone working with fiber optics to pay attention to these details if they want their networks to stay dependable and efficient year after year.

Routine Cleaning and Failure Prevention

Keeping things running smoothly means regular maintenance work, especially when it comes to cleaning those PLC splitters. Without this basic upkeep, networks start to suffer from performance issues and signals get weaker over time. Most technicians will tell you they clean their equipment regularly using standard fiber optic kits. These usually come with alcohol wipes and some compressed air to blast away dust particles and other stuff that gets stuck on connectors. Proper cable handling matters too. Making sure cables aren't bent too tightly or kinked during installation prevents all sorts of problems down the road. According to research published by ITU back in 2022, skipping these simple steps often leads to much higher signal loss than people expect. Companies that stick with good maintenance routines typically see longer lasting systems and far fewer unexpected outages across their network infrastructure.

Decision Framework for Selecting PLC Splitters

Matching Splitter Specifications to Use Cases

When choosing the correct PLC splitter, it all starts with figuring out how well splitter specs match different applications. Take GPON, EPON, or BPON networks for example. The division ratio matters a lot when signals need to be distributed properly across these systems. Getting those ratios right makes a big difference in how well the whole network works. We've seen cases where people got the split specs wrong, which caused serious signal problems and lots of downtime. One company actually lost thousands because their network kept failing after installation. To avoid such headaches, many technicians now turn to simulation software during planning stages. These tools help spot potential mismatches before anything gets installed, saving everyone headaches down the road. Still, nothing beats hands-on testing once everything's in place.

Cost-Benefit Analysis and Vendor Evaluation

When looking at PLC splitters, doing a proper cost vs benefit calculation matters a lot. Need to think about not just what it costs upfront but also how much money gets spent over time running these things. The trick is finding that sweet spot between getting something good enough without breaking the bank. Vendors should be checked carefully too. Look at specs first, then see if their products actually work as promised, and finally check around to see what others in the field say about them. Industry pros who have been there before will tell anyone willing to listen that taking time to vet suppliers saves headaches down the road. Companies that stick with established names usually find their networks run smoother for longer periods, which makes sense when thinking about maintenance costs and system performance over years rather than months.

FAQ Section

What are PLC splitters used for in network infrastructure?

PLC splitters are used to distribute optical signals efficiently across fiber optic networks, enhancing network performance and bandwidth utilization. They are especially critical in FTTH deployments.

Why is the split ratio important in evaluating PLC splitters?

The split ratio determines the distribution of optical power across output ports, affecting signal strength and network flexibility.

What factors should be considered when selecting PLC splitter package types?

Considerations include space saving and flexibility (bare fiber), environmental resistance (ABS), and neatness in cable management (cassette designs).

How can temperature affect the performance of PLC splitters?

Temperature sensitivity impacts lifespan and performance, with ideal operating temperatures ranging from -5°C to +70°C, making controlled environments necessary.

What testing metrics are used to evaluate the quality of PLC splitters?

Testing metrics include Wavelength Dependent Loss (WDL), Polarization Dependent Loss (PDL), and Return Loss, which are crucial for assessing splitter quality and network efficiency.
